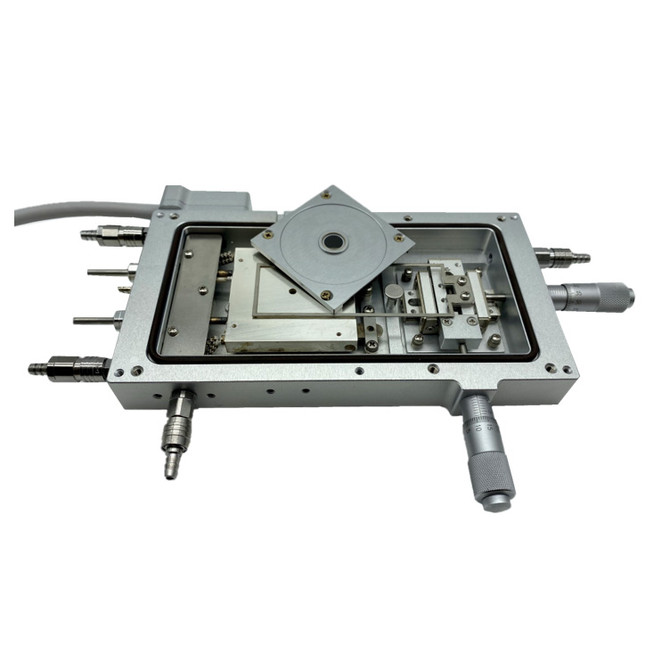

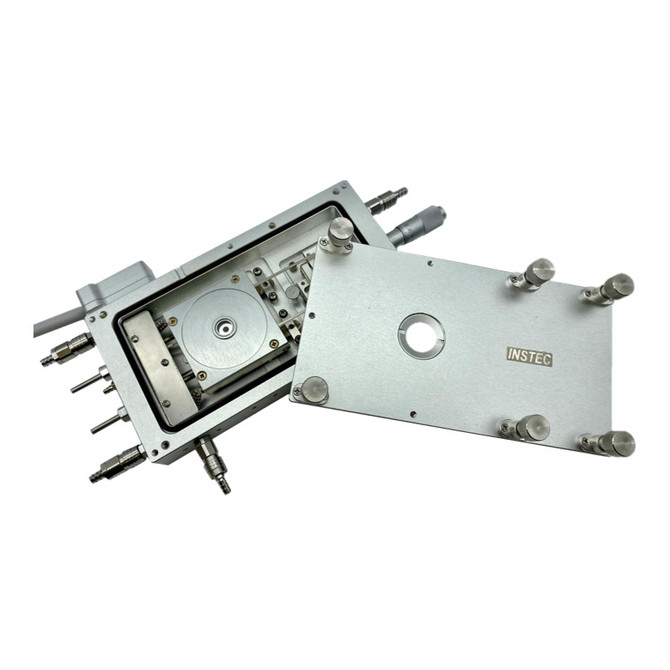

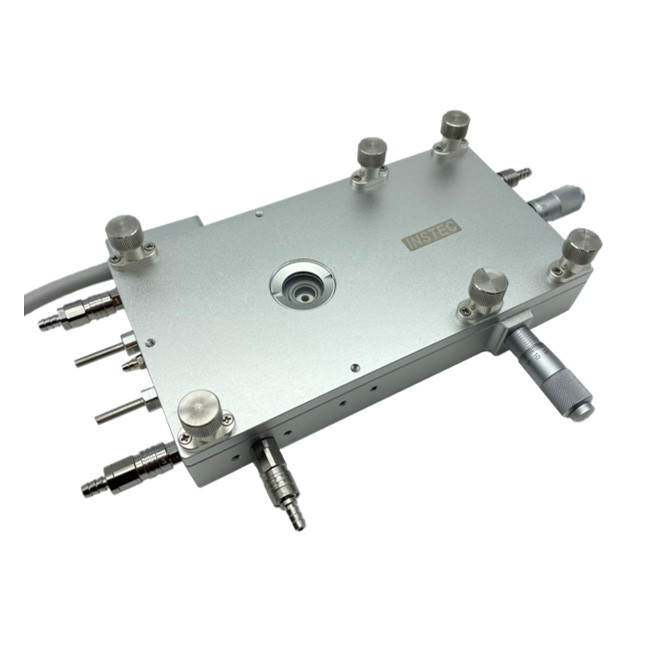

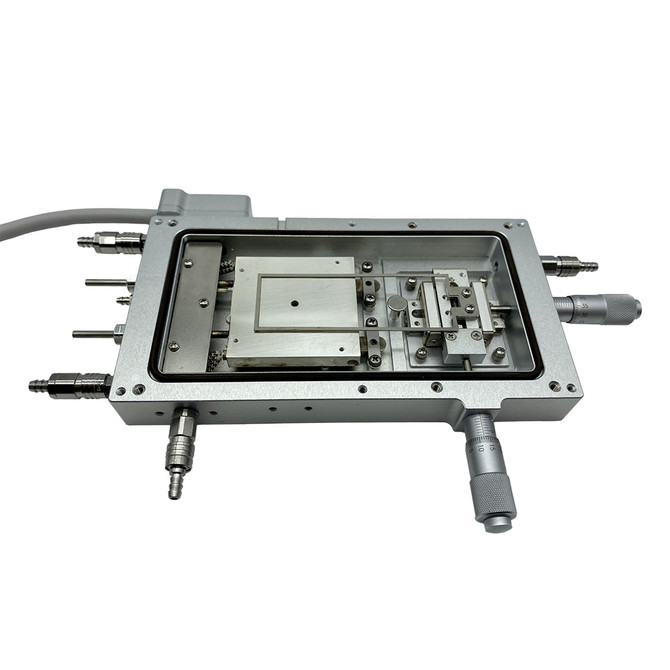

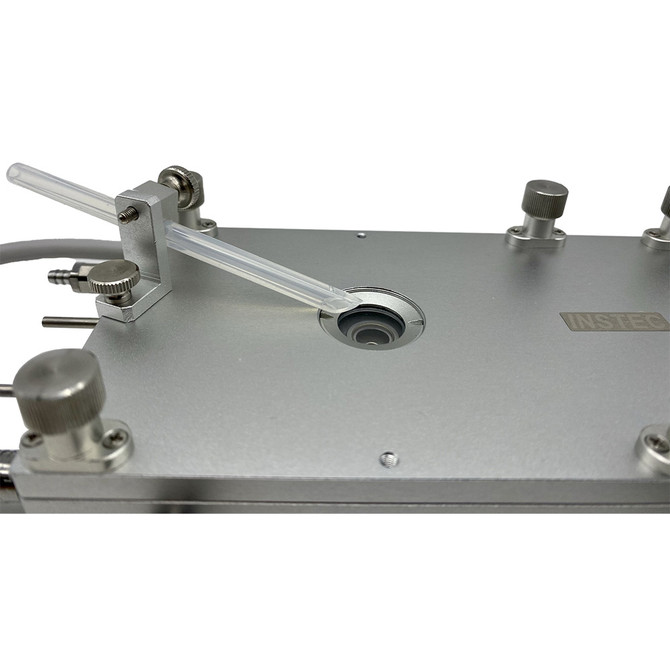

Upright Microscope XY Hot / Cold Stage 50mm x 50mm Atmospheric Control

This heating and cooling stage provides -190°C - 400°C and is ideal for upright optical microscopy and spectroscopy including FTIR, Raman, and X-ray, with a gas tight chamber for making measurements under a controlled atmosphere. The 50mm x 50mm sample area is ideal for 25mm x 75mm glass slides that can be externally positioned using the integrated XY micromanipulators. Top and bottom dual pane windows are removable and exchangeable to meet a range of spectroscopic needs. An optional inner thermal cover is available for work requiring ultra-high temperature stability and uniformity.

• Sample Area 50mm x 50mm, fits standard 25mm x 75mm microscope slides
• Temperature Control Range -190°C - 400°C
• Minimum Temperature -190°C with optional liquid nitrogen cooling
• Maximum Temperature 400°C
• Software Windows software to record and export temperature time data
• Sample Positioning 10mm fine travel with Vernier XY dials for remote manipulation in sealed chambers
• Frame Cooling Integrated frame cooling with optional chiller system
• Optical Access Reflected and transmitted capability
• Minimum Objective Working Distance 6.8mm
• Minimum Condenser Working Distance 15mm
• Mounting Base model includes tapped holes on frame and removable side-mounted L-brackets. Horizontal mounting adapters available for select instruments, or by custom design.
• Frame Dimensions 177mm x 90mm x 25mm
• Weight 1090g
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

Heating and cooling stage part #: HCS302GXY.

NOTE: This item is not returnable.
