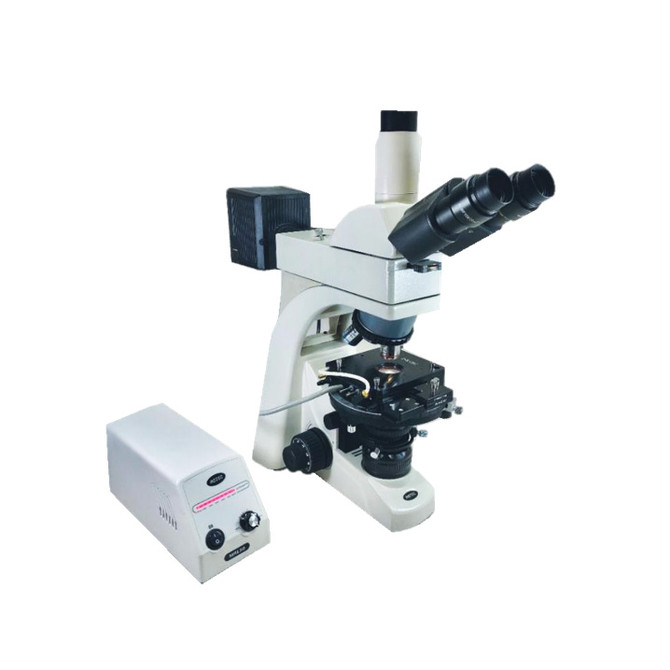

Upright Microscope Hot / Cold Stage 38mm x 50mm Dual Heating

This heating and cooling stage has a dual heater design which virtually eliminates vertical temperature gradients in the sample chamber, making this stage an ideal choice for thicker samples or when temperature uniformity is required. Stage provides -190°C - 400°C and is ideal for upright optical microscopy and spectroscopy with sample side-loading. Top and bottom dual pane windows are removable and exchangeable. Stage accommodates a variety of samples including electro-optic devices, standard 25mm x 75mm microscope slides, and liquid crystal cell holders. Optical sample XY movement option.

• Sample Area 38mm x 50mm, fits standard 25mm x 75mm microscope slides
• Top Cover Heater Heating top cover for optimum temperature stability and uniformity
• Temperature Control Range -190°C - 400°C
• Minimum Temperature -60°C (with optional liquid nitrogen cooling upgraded lower limit of -190°C available)
• Maximum Temperature 400°C
• Software Windows software to record and export temperature time data
• Sample Loading Quick sample handling with side loading/unloading holder

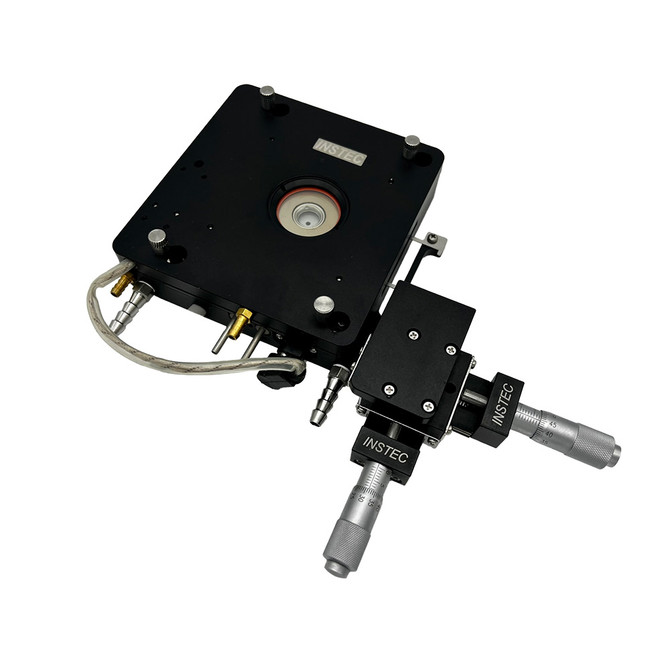

• Sample Positioning Upgrade 10mm fine travel with Vernier XY dials for remote manipulation in closed chambers
• Frame Cooling Integrated frame cooling with optional chiller system
• Optical Access Reflected and transmitted capability
• Minimum Objective Working Distance 7.4mm
• Minimum Condenser Working Distance 10.3mm
• Mounting Base model includes tapped holes on frame and removable side-mounted L-brackets. Horizontal and vertical mounting adapters available for select instruments, or by custom design.
• Frame Dimensions 116.84mm x 111.76mm x 25.7mm
• Weight 780g
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

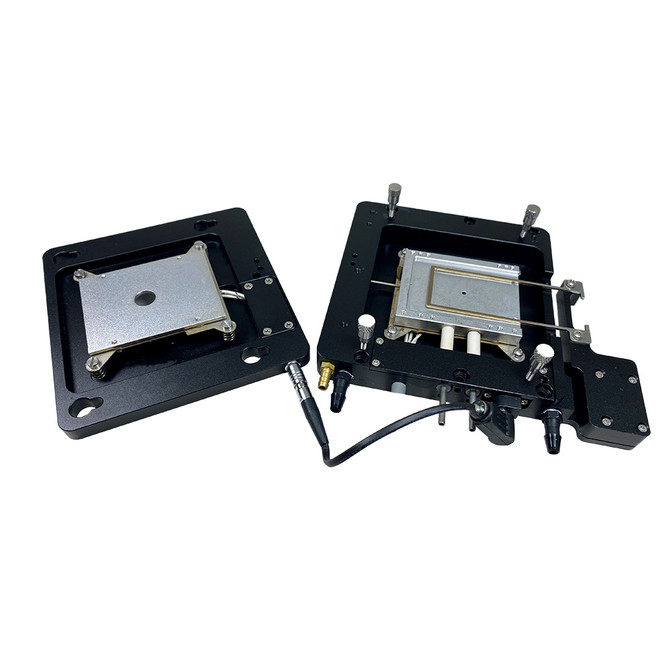

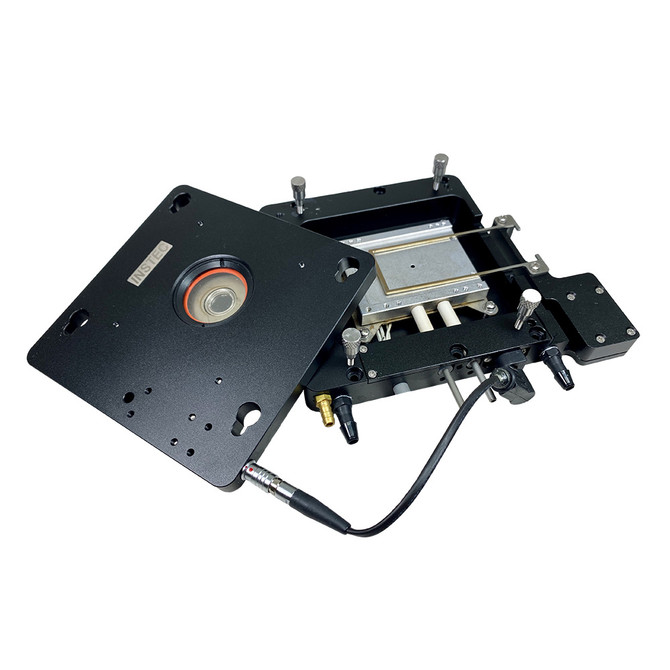

Heating and cooling stage part #s: HCS402, HCS402XY.
