Upright Microscope Hot / Cold Stage 38mm x 50mm

This heating and cooling stage provides -190°C - 400°C and is ideal for upright optical microscopy and spectroscopy with sample side-loading. Top and bottom dual pane windows are removable and exchangeable. Stage accommodates a variety of samples including electro-optic devices, standard 25mm x 75mm microscope slides, and liquid crystal cell holders. Optical sample XY movement option.

• Sample Area 38mm x 50mm, fits standard 25mm x 75mm microscope slides
• Temperature Control Range -190°C - 400°C
• Minimum Temperature -60°C (with optional liquid nitrogen cooling upgraded lower limit of -190°C available)
• Maximum Temperature 400°C
• Software Windows software to record and export temperature time data
• Sample Loading Quick sample handling with side loading/unloading holder
• Sample Positioning Upgrade 10mm fine travel with Vernier XY dials for remote manipulation in closed chambers
• Frame Cooling Integrated frame cooling with optional chiller system
• Optical Access Reflected and transmitted capability
• Minimum Objective Working Distance 5.4mm (without optional spacers to increase chamber height)
• Minimum Condenser Working Distance 10.3mm
• Mounting Base model includes tapped holes on frame and removable side-mounted L-brackets. Horizontal and vertical mounting adapters available for select instruments, or by custom design.
• Frame Dimensions 117mm x 112mm x 23.5mm
• Weight 670g
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

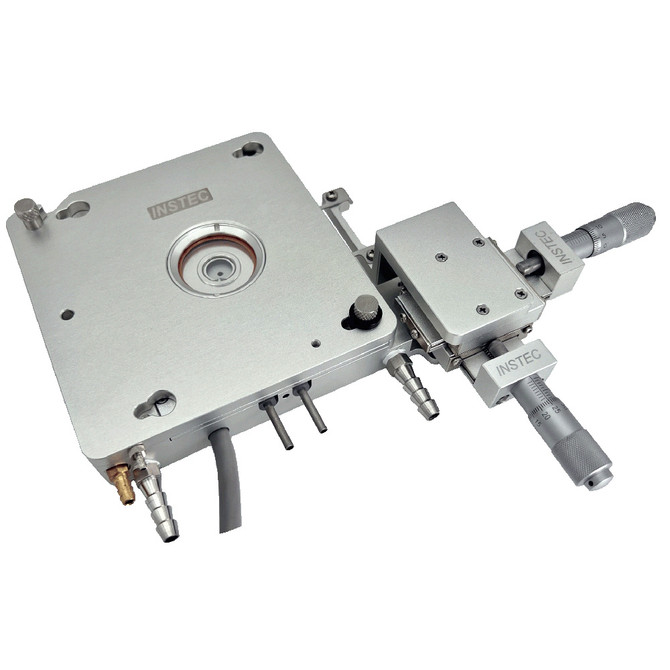

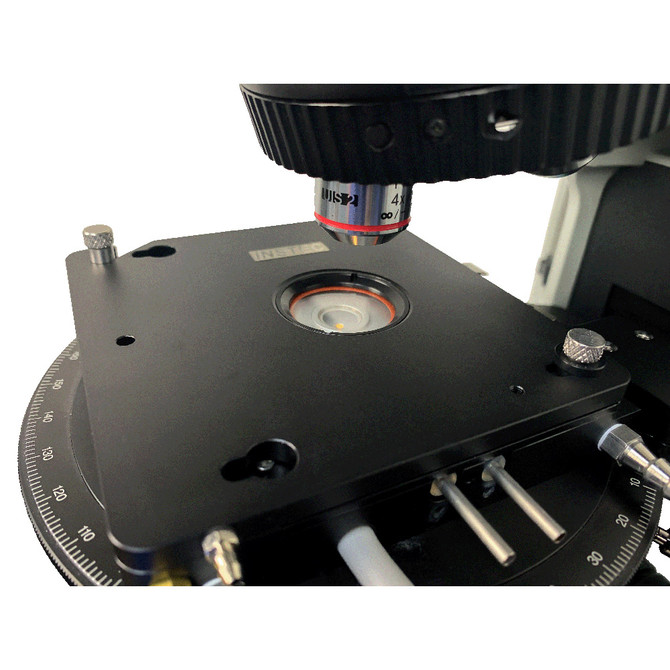

Heating and cooling stage part #s: HCS302, HCS302XY.

NOTE: This item is not returnable.
