Upright Microscope XY Hot / Cold Stage Ø26mm Gas-Tight

This gas-tight heating and cooling stage provides -190°C - 600°C and is ideal for upright optical microscopy and spectroscopy including FTIR, Raman, and X-ray. The gas-tight stage is designed for applications where a wide temperature range and control over the atmosphere are critical. The gas-tight chamber provides a sealed environment for gas purge to avoid condensation or oxidation, or for controlled humidity studies. A low working distance of 5mm makes the HCS621GXY compatible with a wide range of optical systems, often without the need to add long working distance objectives. Integrated sample XY can be used to move the sample across the thermal block without repositioning the thermal stage.

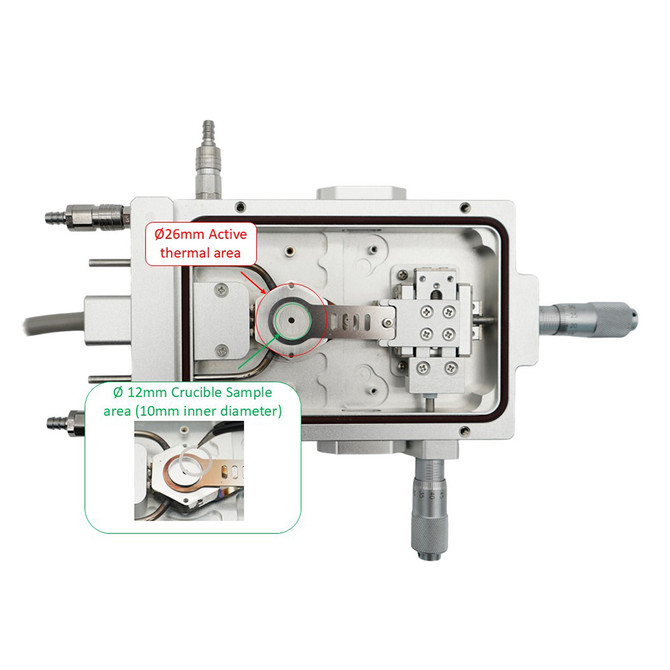

• Sample Area Ø26mm, XY positioner sample area 15mm x 15mm, optional Ø12mm diameter quartz crucible insert
• Temperature Control Range -190°C - 600°C
• Minimum Temperature -190°C with optional liquid nitrogen cooling
• Maximum Temperature 600°C
• Software Windows software to record and export temperature time data

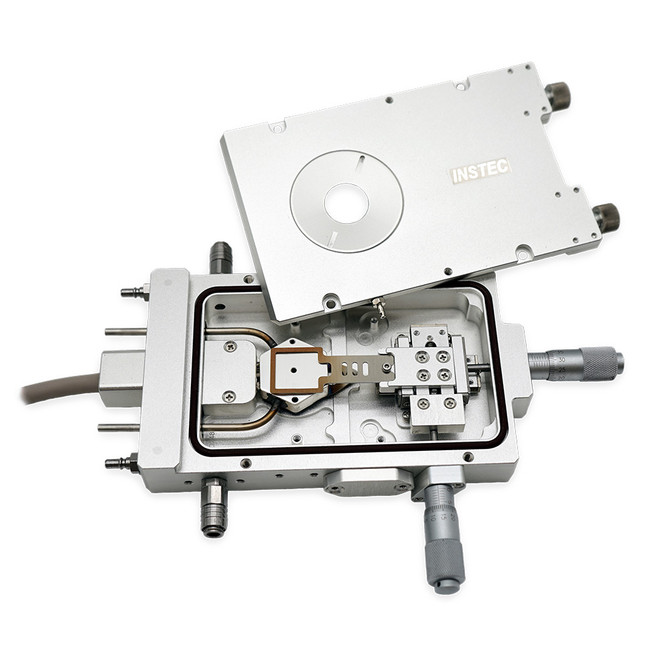

• Sample Loading Requires lid removal
• Sample Positioning 10mm fine travel with Vernier XY dials for remote manipulation in sealed chamber
• Gas-Tight Chamber The gas-tight chamber provides a sealed environment for gas purge to avoid condensation or oxidation, or for controlled humidity studies.
• Frame Cooling Integrated frame cooling with optional chiller system
• Optical Access Reflected and transmitted capability

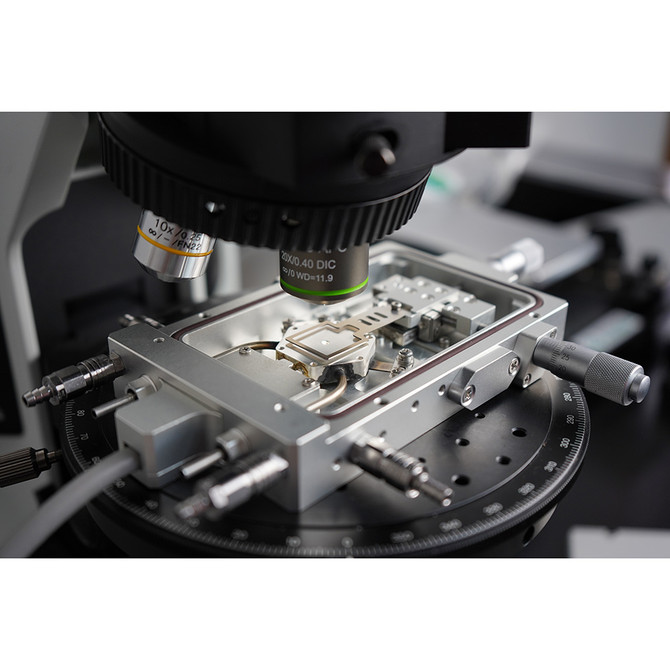

• Minimum Objective Working Distance 5mm
• Minimum Condenser Working Distance 11.5mm
• Mounting Base model includes tapped holes on frame and removable side-mounted L-brackets. Horizontal and vertical mounting adapters available for select instruments, or by custom design.
• Frame Dimensions 150mm x 86mm x 22mm
• Weight 1000g
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

Heating and cooling stage part #: HCS621GXY.

NOTE: This item is not returnable.
