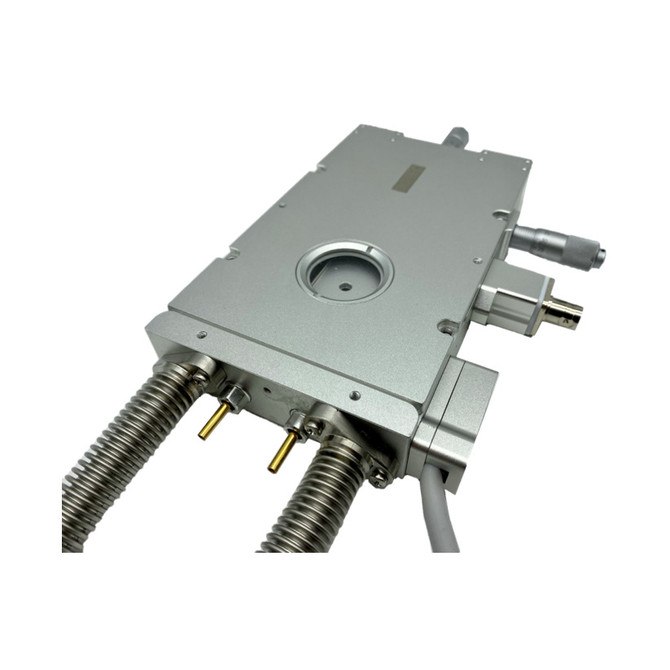

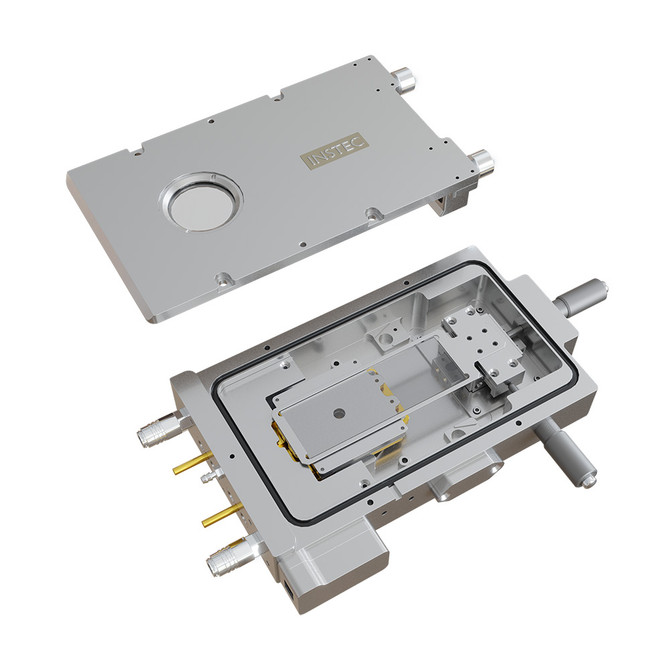

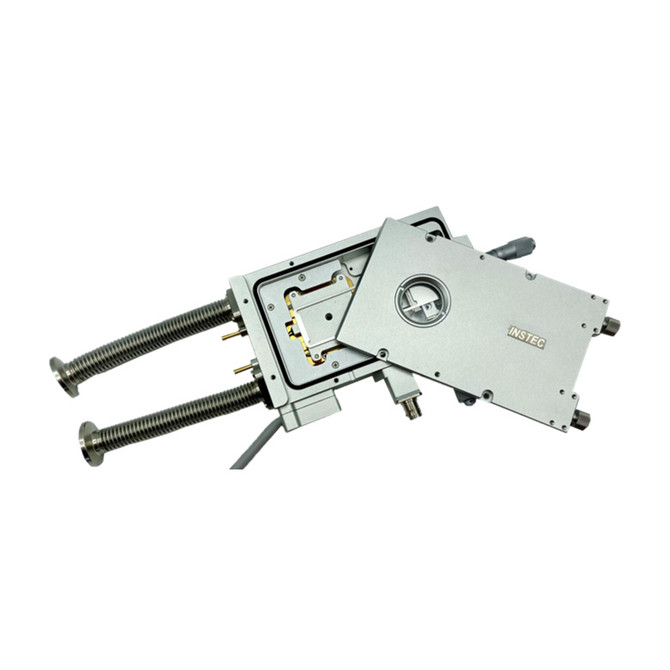

Thermoelectric Upright Microscope Heating Cooling XY Stage Gas / Vacuum Tight

This thermoelectric heating / cooling (Peltier) thermal stage is for upright microscopes and offers gas-tight / vacuum-tight capabilities. Thermoelectric temperature control -40°C - 120°C without the use of liquid nitrogen. The stage hasintegrated XY sample positioning for 25mm x 75mm microscope slides.

• Sample Area 40mm x 40mm
• Temperature Control Range -40°C - 120°C
• Minimum Temperature -25°C continuous operation with standard water circulator. -40°C with optional upgraded chiller.
• Maximum Temperature 120°C
• Software Windows software to record and export temperature time data
• Frame/TEC Cooling Integrated TEC cooling with included C100W water-cooler. Optional chiller upgrade for increased temperature range.
• Optical Access Reflected and transmitted capability
• Minimum Objective Working Distance 5.2mm
• Minimum Condenser Working Distance 14mm
• Sample Positioning 10mm fine travel with vernier XY dials for remote manipulation in closed chamber. Includes standard sample holder for 25mm x 75mm glass slides.
• Atmospheric Control TS102GXY has gas-tight chamber and is ideal for preventing condensation down to -60°C, light-duty oxidation prevention, or for humidity studies via the application of purge gas. TS102VXY has vacuum capability and is ideal for preventing condensation, and oxidation over full operating temperature range via chamber evacuation.
• Mounting Horizontal
• Frame Dimensions 169mm x 96mm x 25mm
• Weight 800g (gas), 900g (vacuum)
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

Heating and cooling stage part #: TS102GXY / TS102VXY

NOTE: This item is not returnable.
