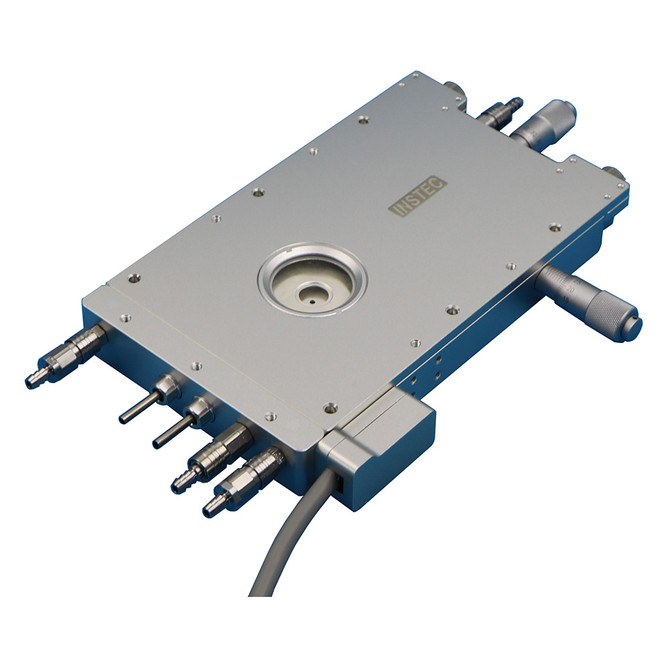

FTIR Microscope XY Hot / Cold Stage 24mm x 24mm Gas-Tight

This gas-tight heating and cooling stage provides -190°C - 600°C and is ideal for microscopy FTIR and spectroscopy including FTIR, Raman, and X-ray. The gas-tight stage is designed for applications where a wide temperature range and control over the atmosphere are critical. The gas-tight chamber provides a sealed environment for gas purge to avoid condensation or oxidation, or for controlled humidity studies.

• Sample Area Ø30mm inscribed hexagon, XY positioner sample area 24mm x 24mm
• Temperature Control Range -190°C - 600°C
• Minimum Temperature -190°C with optional liquid nitrogen cooling
• Maximum Temperature 600°C
• Software Windows software to record and export temperature time data
• Sample Loading Side-loading cover for quick sample access without refocusing instruments
• Sample Positioning 10mm fine travel with Vernier XY dials for remote manipulation in sealed chamber
• Atmosphere Control Sealed chamber with gas purging capability to control humidity, condensation, and oxidation.
• Frame Cooling Integrated frame cooling with optional chiller system
• Optical Access Reflected and transmitted capability
• Minimum Objective Working Distance 10.5mm
• Minimum Condenser Working Distance 10mm
• Mounting Horizontal and vertical mounting capability
• Frame Dimensions 180mm x 100mm x 20.5mm
• Weight 1200g
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

Heating and cooling stage part #: HCS601GXY-IRM.

NOTE: This item is not returnable.
