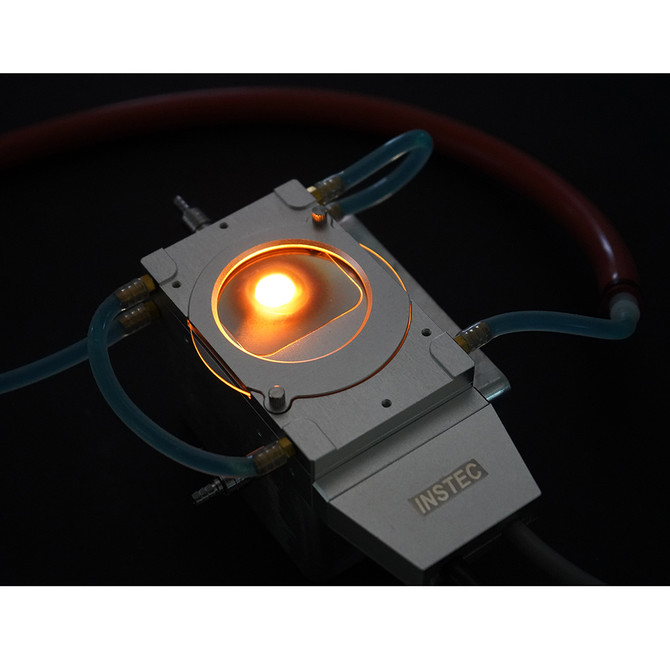

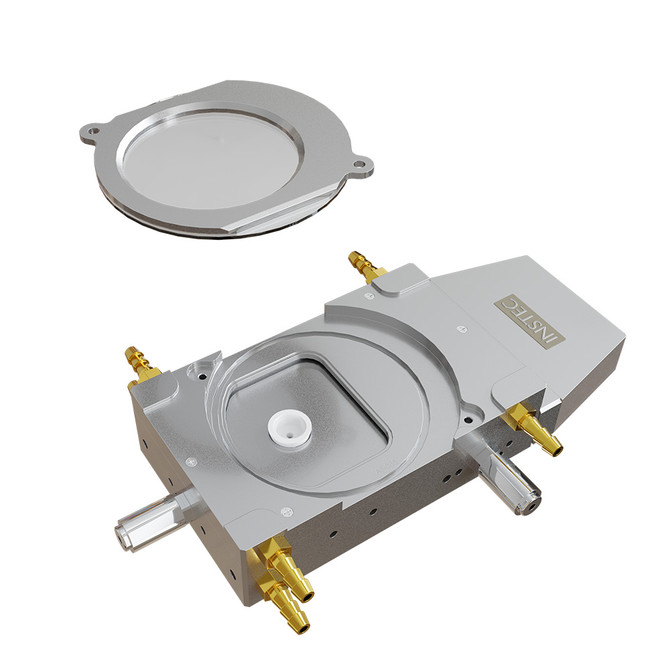

High Temp 1500°C Gas-Tight Heated Stage for Ceramics, Metallurgy, Geology

This gas-tight heating stage provides 30°C - 1500°C and is ideal studying ceramics, metallurgy, geology, and high temperature materials. Electrical feedthroughs and custom sample areas are available. The gas-tight sample chamber help to prevent sample oxidation at high temperatures, and the rotatable observation window ensures optical access if a volatile sample condenses on the window. The closed chamber has gas purging capability.

• Sample Area Ø7.5mm
• Temperature Control Range 30°C - 1500°C
• Minimum Temperature Room Temperature (active cooling by purge gas)
• Maximum Temperature 1500°C
• Software Windows software to record and export temperature time data
• Frame Cooling Integrated frame cooling with optional chiller system
• Optical Access Reflected and transmitted capability
• Atmosphere Control Gas purging capability to control humidity, condensation, and oxidation.
• Minimum Objective Working Distance 6.8mm (with 4mm chamber height) or 8.8mm (with 6mm chamber height)
• Minimum Condenser Working Distance 11.75mm
• Mounting Horizontal and vertical mounting capability
• Frame Dimensions 141mm x 62mm x 25.3mm
• Weight 1350g
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

Heating and cooling stage part #: HS1500G

NOTE: This item is not returnable.
