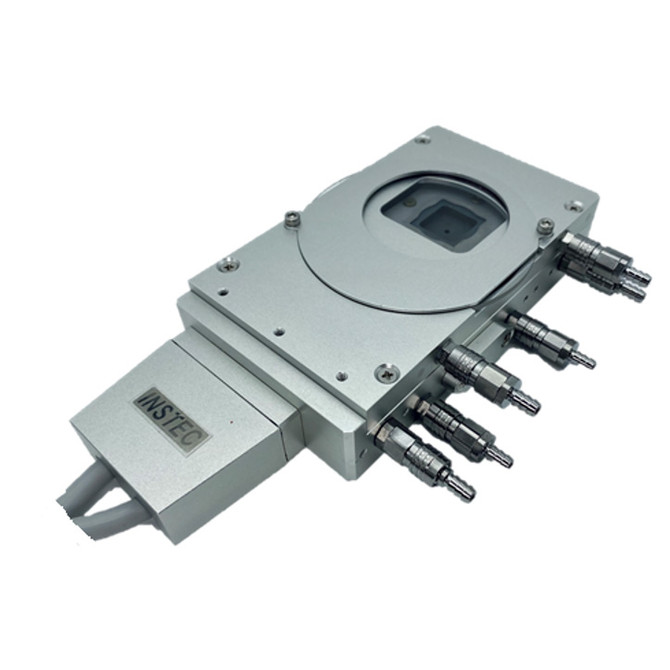

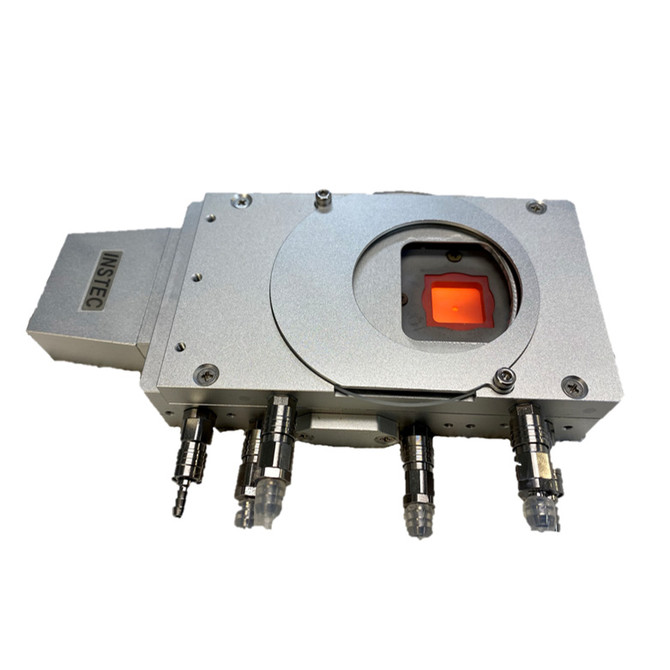

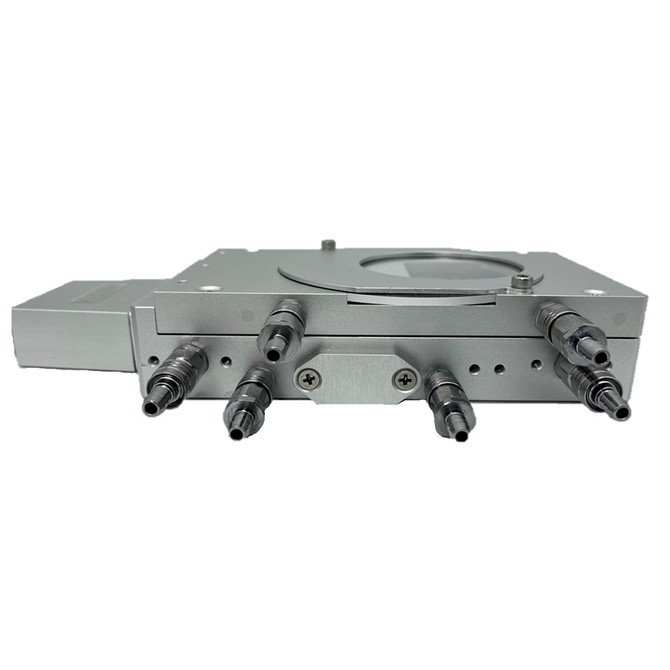

High Temp 1150°C Gas-Tight Heated Stage for Ceramics, Metallurgy, Geology

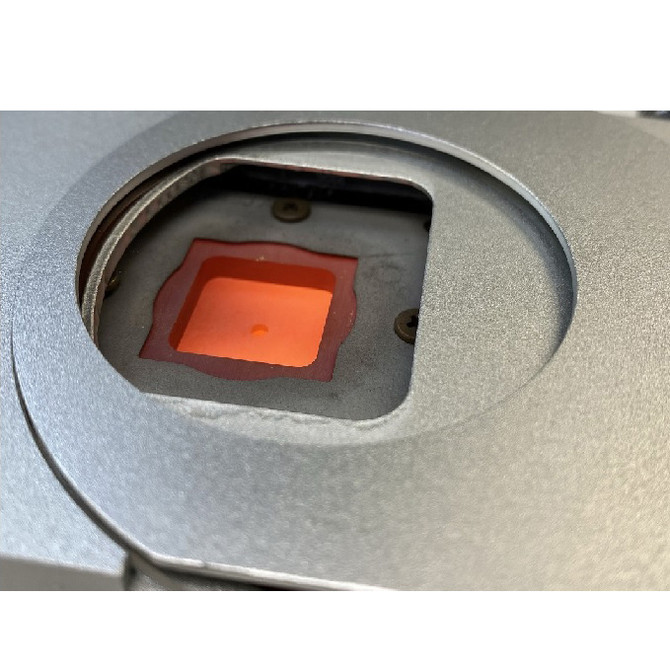

This gas-tight heating stage provides 30°C - 1150°C and is ideal studying ceramics, metallurgy, geology, and high temperature materials. Electrical feedthroughs and custom sample areas are available. The gas-tight sample chamber help to prevent sample oxidation at high temperatures, and the rotatable observation window ensures a clear line of sight despite off-gassing and vaporization. The closed chamber has gas purging capability and has the option for a vacuum-tight sample chamber.

• Sample Area 16mm x 16mm, Ø7.5mm x 3.5mm tall crucible
• Temperature Control Range 30°C - 1150°C
• Minimum Temperature Ambient (active cooling by purge gas)
• Maximum Temperature 1150°C
• Software Windows software to record and export temperature time data
• Frame Cooling Integrated lid and frame cooling with included chiller system
• Optical Access Reflected and transmitted capability
• Atmosphere Control Gas purging capability to control humidity, condensation, and oxidation. Optional vacuum-tight sample chamber model available.
• Minimum Objective Working Distance 9mm
• Minimum Condenser Working Distance 16.2mm
• Mounting Horizontal and vertical mounting capability
• Frame Dimensions 176mm x 75mm x 27mm
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

Heating and cooling stage part #: HS1200G

NOTE: This item is not returnable.
