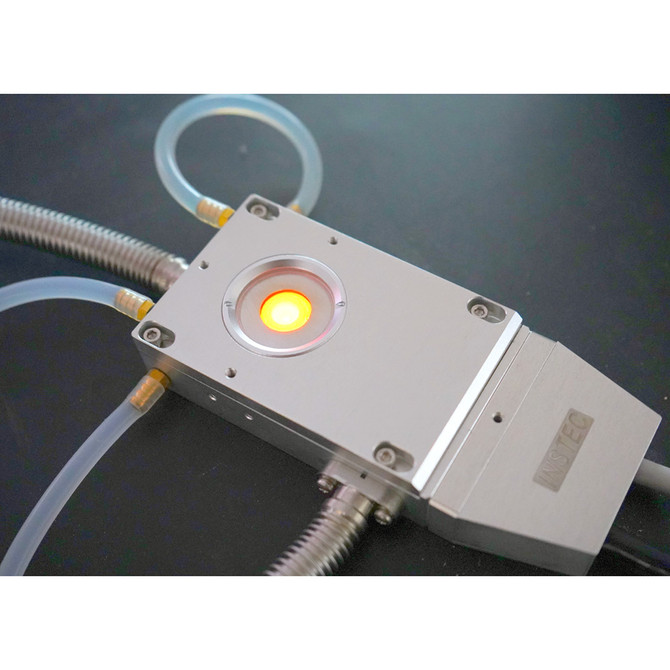

High Temp 1400°C Vacuum-Tight Heated Stage for Ceramics, Metallurgy, Geology

This vacuum-tight heating stage provides 30°C - 1400°C and is ideal studying ceramics, metallurgy, geology, and high temperature materials. Sealed chamber with vacuum and gas purging capability.

• Sample Area Ø7.5mm, chamber height 4mm
• Temperature Control Range 30°C - 1400°C
• Minimum Temperature Room Temperature (active cooling by purge gas)
• Maximum Temperature 1400°C
• Software Windows software to record and export temperature time data
• Frame Cooling Integrated frame cooling with optional chiller system
• Optical Access Reflected and transmitted capability
• Atmosphere Control Sealed chamber with vacuum capability to control humidity, condensation, and oxidation.
• Minimum Objective Working Distance 6.8mm (with 4mm chamber height) or 8.8mm (with 6mm chamber height)
• Minimum Condenser Working Distance 11.75mm
• Mounting Horizontal and vertical mounting capability
• Frame Dimensions 141mm x 62mm x 25.3mm
• Weight 1350g
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

Heating and cooling stage part #: HS1400V

NOTE: This item is not returnable.
