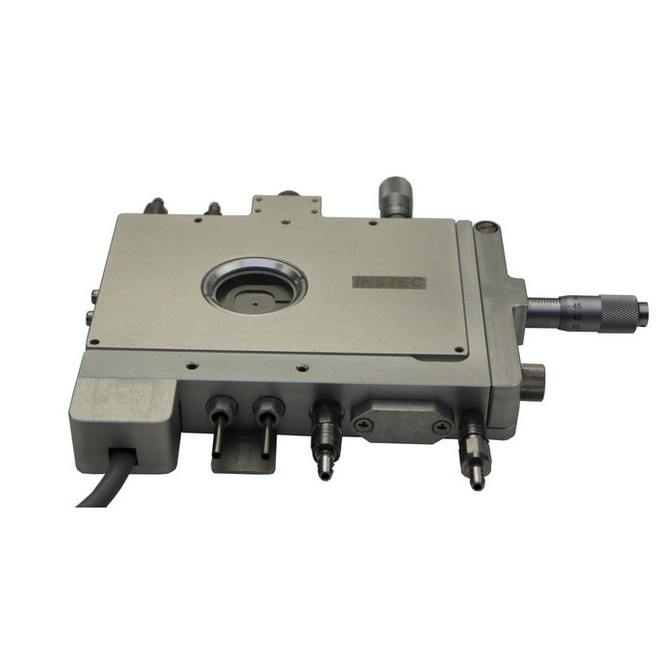

Geology Heating and Cooling Stage for Fluid Inclusions

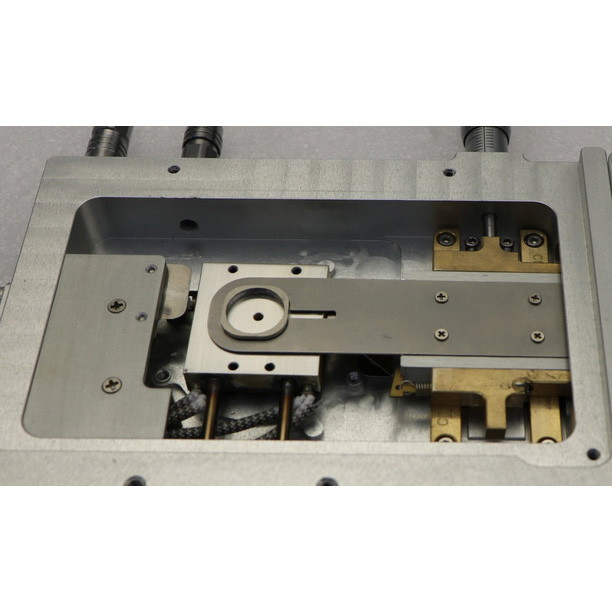

This geology gas-tight stage provides -190°C - 600°C and is designed for applications where side-loading is required as well as control over the atmosphere and a wide temperature range. This stage has a silver heating and cooling block to provide excellent temperature uniformity. The gas-tight configuration provides a sealed chamber for gas purge to avoid condensation.

• Sample Area 28mm x 30mm
• Temperature Control Range -190°C - 600°C
• Minimum Temperature -190°C (with optional liquid nitrogen cooling)
• Maximum Temperature 600°C
• Software Windows software to record and export temperature time data
• Frame Cooling Integrated frame cooling with optional chiller system
• Optical Access Reflected and transmitted capability
• Atmosphere Control Gas-tight configuration provides a sealed chamber for gas purge to avoid condensation.
• Minimum Objective Working Distance 5.2mm
• Minimum Condenser Working Distance 12mm
• Mounting Horizontal
• Frame Dimensions 140mm x 97mm x 22.5mm
• Weight 800g
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

Heating and cooling stage part #: HCS621GXY-GEO

NOTE: This item is not returnable.
