Thermoelectric Upright Microscope Heating Cooling Stage 40mm x 40mm

This thermoelectric heating / cooling (Peltier) thermal stage is for upright microscopes. Thermoelectric temperature control -40°C - 120°C without the use of liquid nitrogen. The stage has convenient side loading of samples and accommodates standard 25mm x 75mm microscope slides as well as liquid crystal cell holders.

• Sample Area 40mm x 40mm
• Temperature Control Range -40°C - 120°C
• Minimum Temperature -30°C continuous operation with standard water circulator. -40°C with optional upgraded chiller.
• Maximum Temperature 120°C (150°C upgrade available with customization)
• Software Windows software to record and export temperature time data
• Frame/TEC Cooling Integrated TEC cooling with included C100W water-cooler. Optional chiller upgrade for increased temperature range.
• Optical Access Reflected and transmitted capability
• Minimum Objective Working Distance 5.8mm
• Minimum Condenser Working Distance 16.5mm

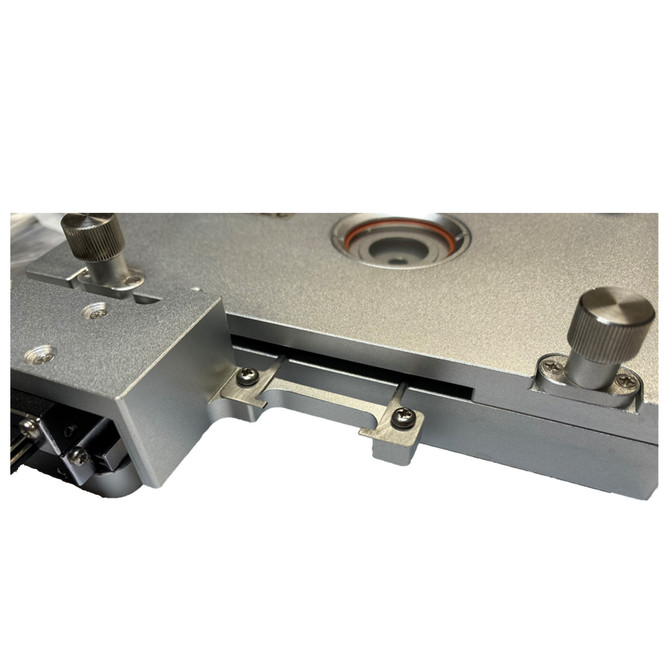

• Sample Positioning TS102 includes standard 25mm x 75mm glass slide holder. TS102XY includes vernier dials with 10mm fine travel for XY sample manipulation. Compatible with XY slide holder and liquid crystal holders with a 3mm spacer kit.
• Mounting Base model includes tapped holes on frame and removable side-mounted L-brackets. Horizontal mounting adaptors for specific instruments are available.
• Frame Dimensions 155mm x 135mm x 25mm
• Weight 800g
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

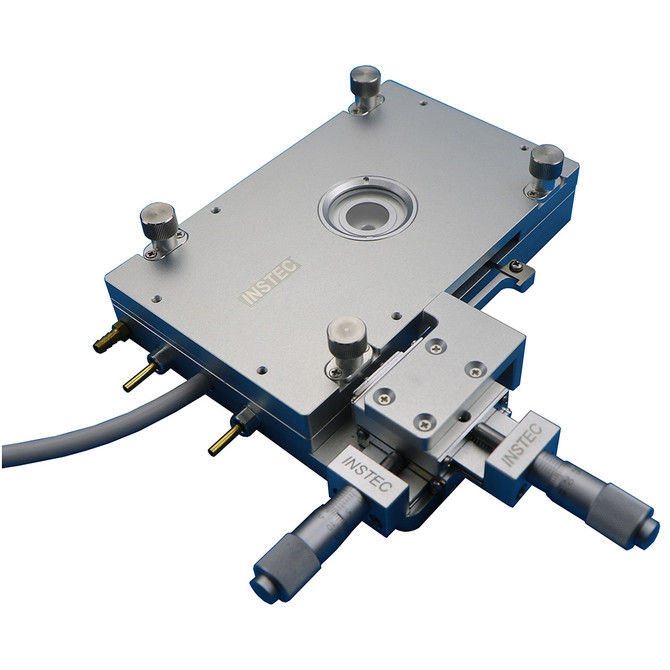

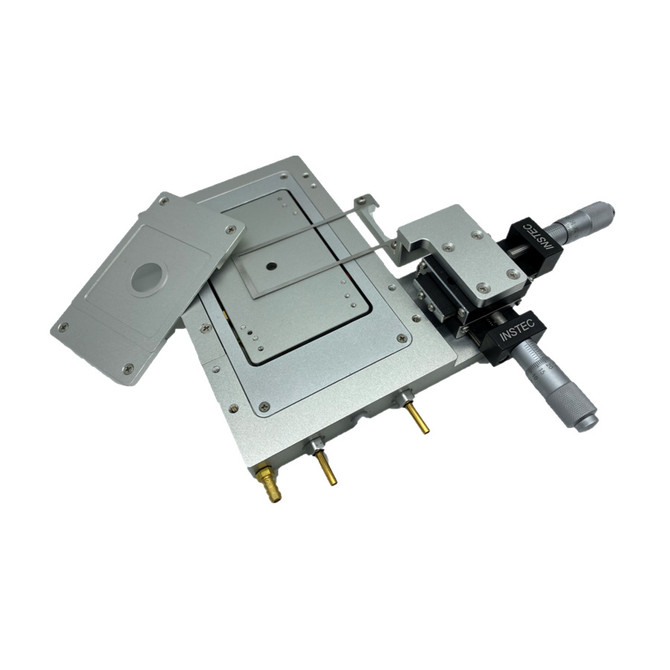

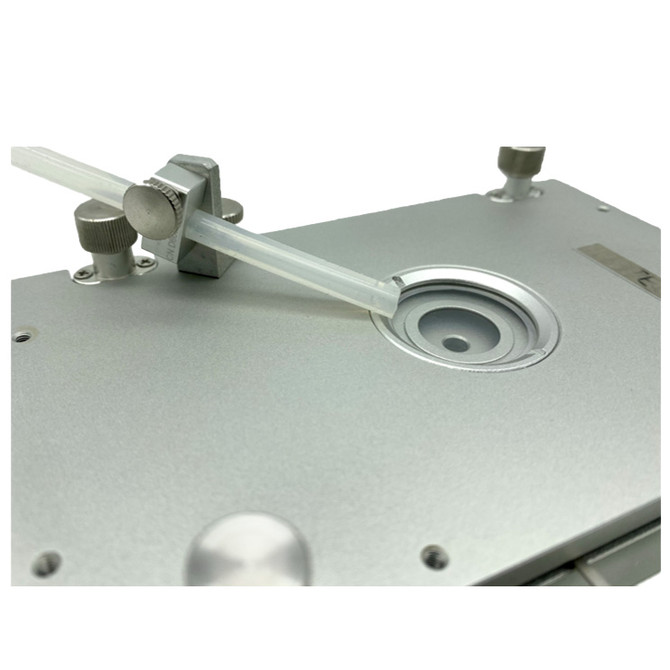

Heating and cooling stage part #: TS102 / TS102XY

NOTE: This item is not returnable.
