Mitutoyo Whitworth Screw Pitch Gage Set 4-60 TPI

Mitutoyo Whitworth Screw Pitch Gage Set 4-60 TPI

Name: Mitutoyo Whitworth Screw Pitch Gage Set 4-60 TPI
SKU: 188-102
Price: 62 USD
Availability: InStock

No reviews yet Write a Review

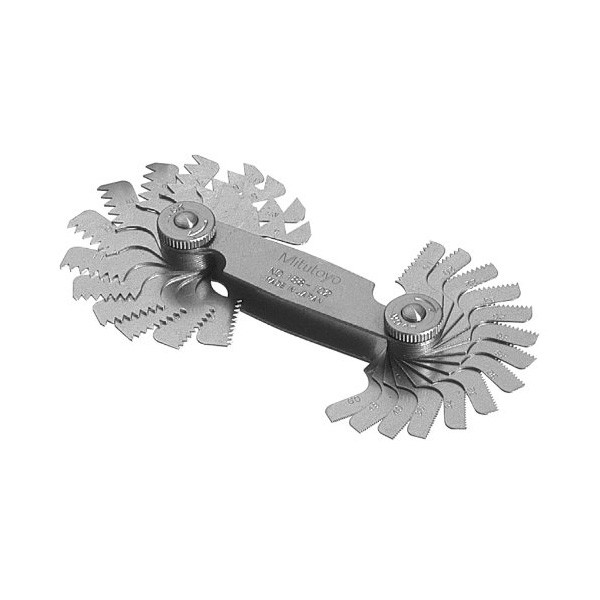

This Whitworth screw pitch gage set has the thread pitch size stamped on each gage and has the following specifications: Metric Screw Pitch Gage: 55º Rang…

SKU: 188-102

$62.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

This Whitworth screw pitch gage set has the thread pitch size stamped on each gage and has the following specifications:

Metric Screw Pitch Gage: 55º
Range: 4 - 60 TPI
28 Leaves: 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 34, 36, 40, 48, 60 TPI

Technical Data:

TPI	Metric	Accuracy
TPI	Metric	Pitch (mm)	Angular (minutes)
4-6	6.35-4.23	+/-0.05	+/-35
7-12	3.63-2.12	+/-0.05	+/-40
13-25	1.95-1.02	+/-0.05	+/-45
26-48	0.98-0.53	+/-0.05	+/-50
60	0.42	+/-0.05	+/-60

Mitutoyo part #: 188-102

NOTE: This item is not returnable.
