Mitutoyo Metric and Unified Screw Pitch Gage Set 0.5-6mm / 4-56 TPI
Mitutoyo Metric and Unified Screw Pitch Gage Set 0.5-6mm / 4-56 TPI
Mitutoyo Metric and Unified Screw Pitch Gage Set 0.5-6mm / 4-56 TPI

Mitutoyo Metric and Unified Screw Pitch Gage Set 0.5-6mm / 4-56 TPI

No reviews yet Write a Review
This metric and unified screw pitch gage set has the thread pitch size stamped on each gage and has the following specifications: Metric Screw Pitch Gage: 60&o…

Read more
SKU: 188-152
$42.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

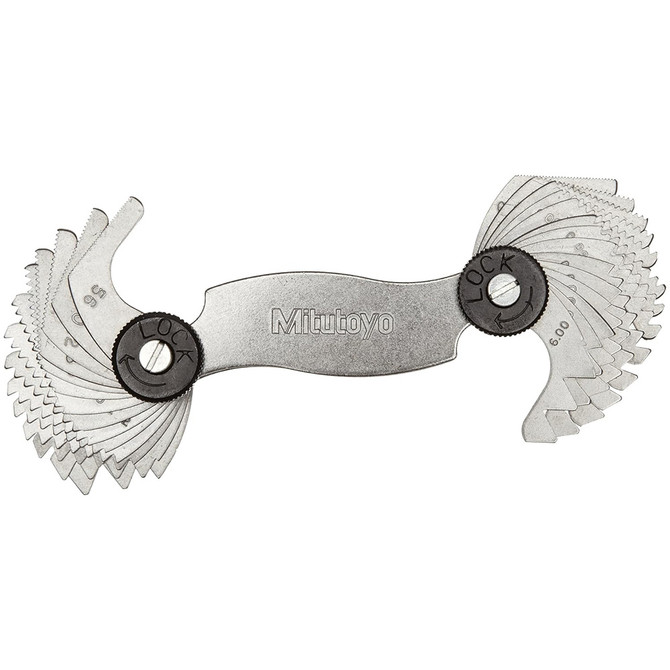

This metric and unified screw pitch gage set has the thread pitch size stamped on each gage and has the following specifications:

  • Metric Screw Pitch Gage: 60º
  • Range: 0.5 - 6mm / 4 - 56 TPI
  • 28 Leaves: 4, 6, 8, 10, 11, 11-1/2, 12, 13, 16, 20, 28, 32, 40, 56 TPI, and 0.50, 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00. 6.00mm



Technical Data:

TPI Metric  Accuracy
 Pitch (mm) Angular (minutes)
4-6  6.35-4.23  +/-0.05  +/-35
7-12 3.63-2.12   +/-0.05  +/-40
13-25  1.95-1.02   +/-0.05  +/-45
26-48  0.98-0.53   +/-0.05  +/-50
60  0.42   +/-0.05  +/-60


Mitutoyo part #: 188-152

NOTE: This item is not returnable.

Customer reviews

This product hasn't received any reviews yet. Be the first to review this product!

Write a Reviews

Description

This metric and unified screw pitch gage set has the thread pitch size stamped on each gage and has the following specifications:

  • Metric Screw Pitch Gage: 60º
  • Range: 0.5 - 6mm / 4 - 56 TPI
  • 28 Leaves: 4, 6, 8, 10, 11, 11-1/2, 12, 13, 16, 20, 28, 32, 40, 56 TPI, and 0.50, 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00. 6.00mm



Technical Data:

TPI Metric  Accuracy
 Pitch (mm) Angular (minutes)
4-6  6.35-4.23  +/-0.05  +/-35
7-12 3.63-2.12   +/-0.05  +/-40
13-25  1.95-1.02   +/-0.05  +/-45
26-48  0.98-0.53   +/-0.05  +/-50
60  0.42   +/-0.05  +/-60


Mitutoyo part #: 188-152

NOTE: This item is not returnable.
