Mitutoyo Metric and Unified Screw Pitch Gage 0.4-7mm / 4-42 TPI
Mitutoyo Metric and Unified Screw Pitch Gage 0.4-7mm / 4-42 TPI
Mitutoyo Metric and Unified Screw Pitch Gage 0.4-7mm / 4-42 TPI
Mitutoyo Metric and Unified Screw Pitch Gage 0.4-7mm / 4-42 TPI
Mitutoyo Metric and Unified Screw Pitch Gage 0.4-7mm / 4-42 TPI
Mitutoyo Metric and Unified Screw Pitch Gage 0.4-7mm / 4-42 TPI

Mitutoyo Metric and Unified Screw Pitch Gage Set 0.4-7mm / 4-42 TPI

No reviews yet Write a Review
This metric and unified screw pitch gage set has the thread pitch size stamped on each gage and has the following specifications: Metric Screw Pitch Gage: 60&o…

Read more
SKU: 188-151
$75.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

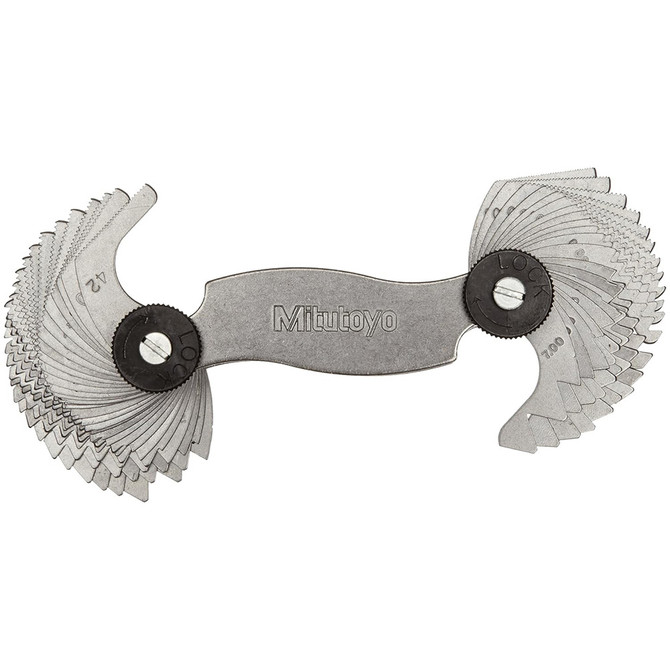

This metric and unified screw pitch gage set has the thread pitch size stamped on each gage and has the following specifications:

  • Metric Screw Pitch Gage: 60º
  • Range: 0.4 - 7mm / 4 - 42 TPI
  • 51 Leaves: Set of 21 leaves: 0.4, 0.5, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm, and Set of 30 leaves: 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 11-1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI



Technical Data:

TPI Metric  Accuracy
 Pitch (mm) Angular (minutes)
4-6  6.35-4.23  +/-0.05  +/-35
7-12 3.63-2.12   +/-0.05  +/-40
13-25  1.95-1.02   +/-0.05  +/-45
26-48  0.98-0.53   +/-0.05  +/-50
60  0.42   +/-0.05  +/-60


Mitutoyo part #: 188-151

NOTE: This item is not returnable.
