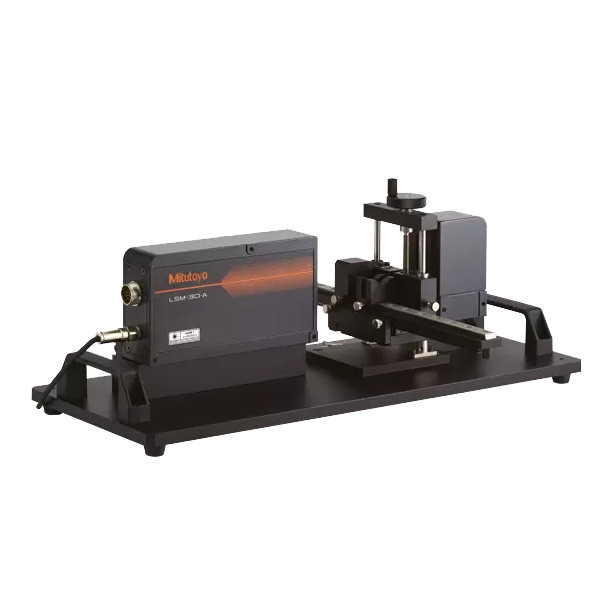

Mitutoyo Laser Micrometer Adjustable Workstage for LSM-503S or LSM-30-A

No reviews yet Write a Review
The Mitutoyo laser micrometer adjustable workstage is compatible with the LSM-30-A and LSM-503S standard laser micrometer. This adjustable workstage aids in mea…

Read more
SKU: 02AGD490
$5,502.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

The Mitutoyo laser micrometer adjustable workstage is compatible with the LSM-30-A and LSM-503S standard laser micrometer. This adjustable workstage aids in measuring workpiece diameter by means of up/down and left/right slide adjustments. This workstage is optimal for quality control of precision shafts, rollers, pin gages, etc. NOTE: This is only the workstage. The laser scan micrometer is sold separately.

  • Horizontal Adjustment 200mm
  • Vertical Adjustment 35mm
  • Measuring Range 0.3 - 30mm
  • Maximum Table Load 2.0 kg (4.4 lbs)
  • Weight 4.9 kg (10.8 lb)
  • Includes 2 v-blocks (Qty 2 part # 02AGD420) and one workpiece stop (part # 02AGD430).

NOTE: This item is not returnable.
