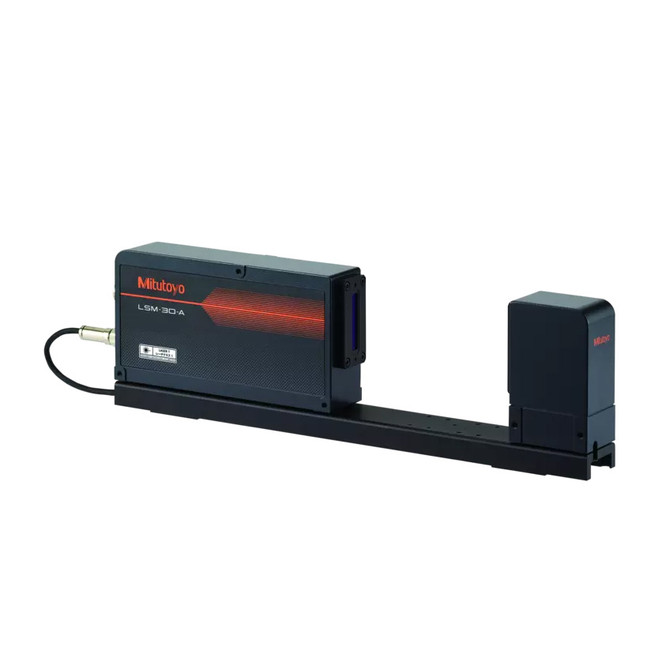

Mitutoyo LSM-30-A In-line Laser Scan Micrometer 0.3 - 30mm

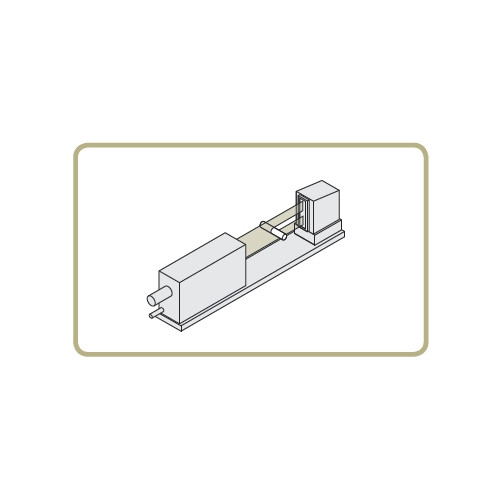

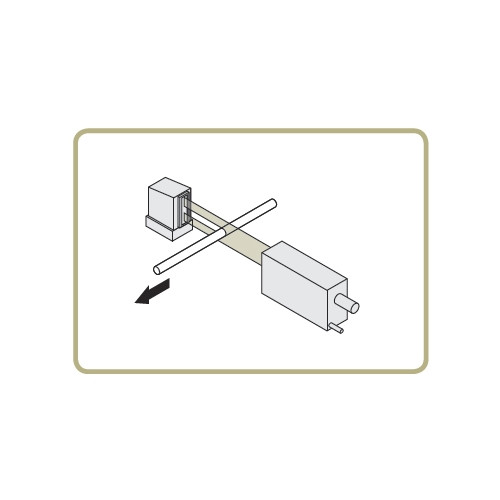

The Mitutoyo LSM-30-A is a laser scan micrometer made for high accuracy, non-contact in-line measurement. This laser scan micrometer can be used for applications such as catheter and magnet wire measurements, roller-bearing measurements, and film sheet thickness measurements. NOTE: This system must be connected to an interface unit and a controller to be operable. These items are available for purchase separately.

• Measuring Range 0.3 - 30mm
• Resolution 0.01 µm
• Repeatability (2σ) Full range: Ø 30 mm: ±0.09 µm
• Linearity ±1.0µm whole range
• Measuring Area 10mm x 30mm (optical axis depth x scanning width
• Scanning Rate 3200 scans/s
• Laser Wavelength 650nm (visible), Class 1 semiconductor laser with 1.0 mW maximum output
• Laser Scanning Speed 226m/s
• Protection Level IP67
• Display Unit None included

View the Laser Scan micrometer brochure which provides more details on how to configure a complete system.

NOTE: This item is not returnable.
