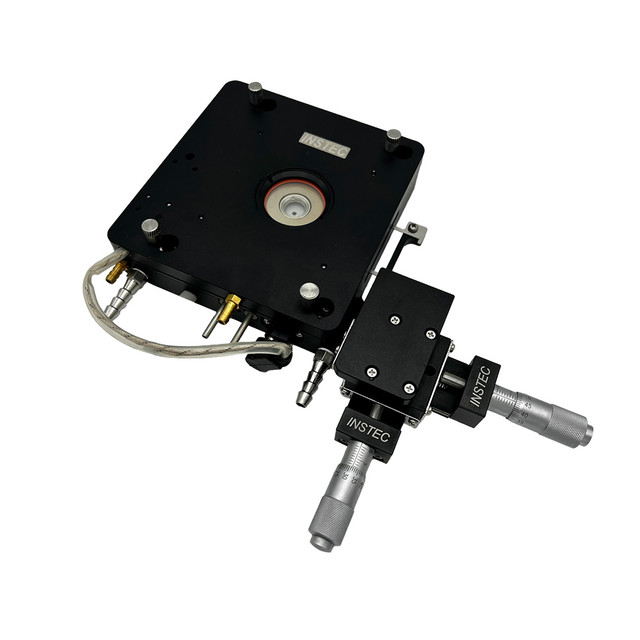

Inverted Microscope Hot / Cold Stage 23mm x 28mm

This heating and cooling compact stage provides -190°C - 300°C with resistive heating and liquid nitrogen cooling option. The stage is ideal for inverted microscopy and the compact design allows for easy mounting on nearly all inverted microscope platforms. Sealed chamber for enhanced temperature uniformity with gas purging capability and rough-vacuum capability.

• Sample Area 23mm x 28mm
• Temperature Control Range -190°C - 300°C
• Minimum Temperature -80°C (with optional liquid nitrogen cooling, optional -190°C upgrade available)
• Maximum Temperature 300°C
• Software Windows software to record and export temperature time data
• Frame Cooling Integrated frame cooling with optional chiller system, recommended when heating above 150°C
• Optical Access Reflected and transmitted capability via transmission aperture
• Minimum Objective Working Distance 5.8mm
• Minimum Condenser Working Distance 11.5mm
• Mounting Horizontal and vertical mounting capability.
• Frame Dimensions 135mm x 134mm x 23.5mm
• Weight 610g
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

Heating and cooling stage part #s: HCS321Gi

NOTE: This item is not returnable.
