No reviews yet Write a Review
The Inspectis F40s HD All in One system with Inspectis Basics Software features the F40s HD digital microscope with 30:1 motorized zoom in an industrial grade a…

Read more
SKU:
$11,592.00 - $11,762.00
Hurry up! Current stock:
Request a quote
Description

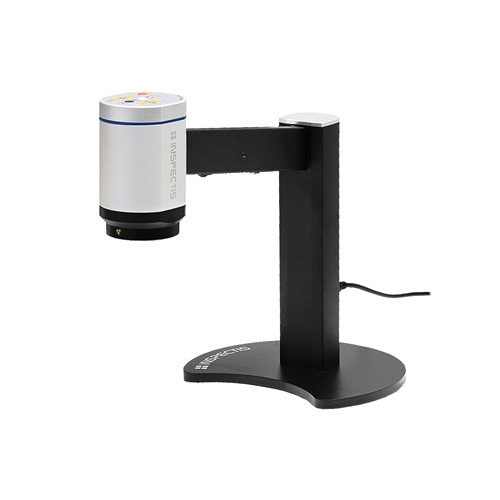

The Inspectis F40s HD All in One system with Inspectis Basics Software features the F40s HD digital microscope with 30:1 motorized zoom in an industrial grade aluminum housing, 21" HD monitor, computer, and full HD HDMI USB3.0 image and capture device. This system includes Inspectis Basics Software with functions for image view, capture, annotation, line measurement and has pre-calibrated magnifications. Explore more features of Inspectis Basics Software.

  • Video Output: Full HD 1080p at 60fps. HDMI type A Female connector on rear panel.
  • Imager: 3.2 MP, 1920(H) x 1080(W) 16:9 format progressive scan
  • Lens: High resolution motorized 30:1 optical zoom with auto-focus and auto-brightness intensity control
  • Working Distance: 226mm with standard lens
  • Onboard Control: Iris, Zoom, Auto Focus on/off, white balance. Optional Inspectis 2 Pedal Foot Switch and Inspectis Advanced Camera Remote Control can be purchased for hands free control of the camera. Hands free control requires both of these products.
  • Environmental Protection: Camera housing is hermetically sealed to prevent entry of dust or other contaminates. ESD protection built-in to camera housing.
  • Capture Device: USB image and video capture device for recording and storing images and videos.
  • Illumination: Two illumination options
    • LED Ring Light: Variable intensity, 48 cool LED lights, 35,000 LUX. LEDs are rated to last 100,000 hours. 95-240 VAC, 50/60Hz, includes 110v - 240v power cord.
    • LED Dual Pipe: Each pipe light contains 5w LED light with a bulb life expectancy of 30,000 hours and adjustable intensity. Each pipe is ~18" long. 90v - 250v power supply.
  • Stand: Rigid industry standard all aluminum integrated stand.
  • Computer / Monitor: Computer with 21" HD monitor with 1920 x 1080 resolution.
  • Software: Inspectis Basics Software features:
    • Live image with freeze frame
    • Capture still images and video
    • Digital zoom
    • Calibrated measurement thru zoom range
    • Pre-set for different magnification levels
    • Lens distortion correction
    • Flip image, vertical & horizontal
    • Distance measurement
    • Annotation
    • Object count
    • Overlay crosshair or grid
    • Saved image folders
  • Input / Output: HDMI video output, 5PMiniDin power input, 8P MiniDin for communication.
  • Manufactured in Sweden.
Zoom Factor Magnification on 21" LCD Optical Magnification
1 1.9 0.9
2 3.3 1.6
5 8.1 3.9
10 16.0 7.7
15 23.9 11.5
20 31.6 15.2
25 39.3 18.9
30 47.4 22.8
 35 57.4 27.6
40 71.5 34.4
40 w/ +1 89.2 42.9
40 w/ +2 103.9 50

NOTE: This item is not returnable.
