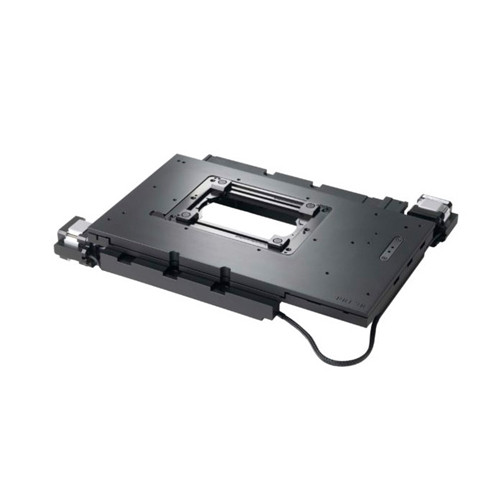

ZEISS Axiovert Axio Observer Encoded Motorized Inverted Microscope Stage

The Prior Scientific H117 is a precise, reliable and repeatable motorized stage. This stage is quiet and reliable, compatible with most incubators, and has a wide range of sample holders available. The stage has a completely flat top for easy access and includes Intelligent Scanning Technology which allows the stage to be pre-programmed with a unique set of operating characteristics particular to that stage. The Intelligent Scanning Technology allows the ProScan III Controller to make any required adjustments to maintain superior orthogonality and metric accuracy.

Compatible with ZEISS  Axiovert 200, Axio Observer, Axio Vert.A1 inverted microscopes.

Stepper Encoded Motorized Stage Specifications:

• Travel: 115mm x 77mm XY travel
• Motor Type: Stepper Encoded
• Resolution: 0.1µm Linear Encoded or 0.05µm Linear Encoded (select when ordering)
• XY Repeatability: 0.2µm
• Metric Accuracy (per mm of travel): 0.046µm
• Maximum Velocity: 15mm/second
• Squareness: 30 arc/second
• Motors: Stepper Encoded
• Limit Switches: X and Y standard
• Microscope Stage Accessories:
  • Four Slide Holder
  • Glass Plate
  • 47mm Filter Paper Holder
  • Microtiter Plate Holder
  • Rotating Single Slide Holder
  • Low Profile Single Slide Holder
  • Petri Dish Holder
  • Universal Specimen Holder
  • Aluminum Plate
• Weight: 6 kg (13.2 lbs)
• Max Load Capacity:   10 kg (22 lbs)
• Warranty: 5 Years

View the ZEISS Axiovert 200, Axio Observer, Axio Vert.A1 Microscopes Stepper Encoded Motorized Stage Brochure

NOTE: This item is not returnable.

Prior Scientific Part #s H117E2L2, H117E1L5.
