SCHOTT KL 300 LED Ring Light System

This SCHOTT KL-300 LED light source system includes a 40mm ring light. The light box is compact and easy to operate. The KL-300 light source offers flexibility in your system configuration as you may change the ring light for another type of light guide if required. Refer to the KL 300 LED System Diagram for other possible configurations.

KL-300 LED light box specifications are as follows:

• Color Temperature: 5600K
• Luminous Flux: Up to 80² lm light flux.
• Voltage: 100~240V, 50-60Hz.
• Light Box: Intensity control 0-100%
• Light Box Dimensions / Weight: 107mm x 114mm x 61mm (4.2" x 4.5" x 2.4"), 0.35kg (0.77 lb)
• Certifications: CE
• Warranty: 2 years

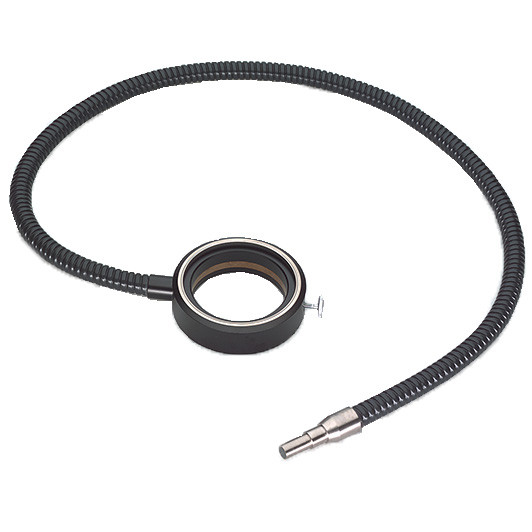

The 40mm ring light has the following specifications:

• Inner Diameter: 40mm (1.58")
• Outer Diameter: 64mm (2.52")
• Length: 1000mm (39.37")
• Height: 24mm (0.95")
• Working Distance: 25-300mm (0.98" - 11.81")
• Active Branch Diameter: 7mm (0.28")
• Outer Jacket Diameter: 11.8mm (0.47")
• Light Source Adapter Diameter: 10mm (0.39")

View the SCHOTT KL-300 LED Data Sheet

SCHOTT part #120.300, 157.04
