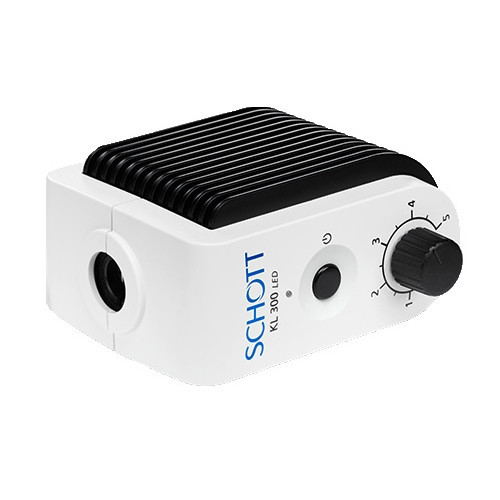

This SCHOTT KL-300 LED light source system has your choice of a single or dual semi-rigid pipe light guide. The light box is compact and easy to operate. The KL-300 light source offers flexibility in your system configuration as you may change light guides if required.
KL-300 LED light box specifications are as follows:
- Color Temperature: 5600K
- Luminous Flux: Up to 802 lm light flux.
- Voltage: 100~240V, 50-60Hz.
- Light Box: Intensity control 0-100%
- Light Box Dimensions / Weight: 107mm x 114mm x 61mm (4.2" x 4.5" x 2.4"), 0.35kg (0.77 lb)
- Certifications: CE
- Warranty: 2 years
Choose from either a semi-rigid single or dual gooseneck light guide when ordering. The gooseneck light guides have the following specifications:
- Length: 500mm (19.69") (In the case of the dual gooseneck, this is the length of each branch.)
- Tip diameter: 6mm (0.24")
- Active branch diameter: 3.5mm (0.14")
- Includes: Focusing lens or lenses for each tip of the light guide.
View the SCHOTT KL-300 LED System Diagram
View the SCHOTT KL-300 LED Data Sheet
SCHOTT part #120.300, 170.101 or 170.202, and 158.210 (Qty 1 or 2)
