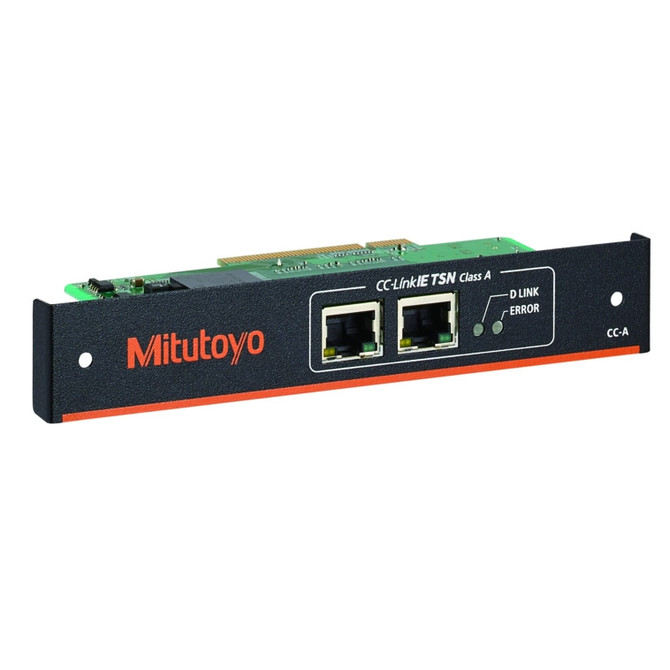

Mitutoyo Laser Scan Micrometer Interface Unit LSM-CC-A CC-Link

The Mitutoyo laser scan interface unit LSM-CC-A is designed to be inserted into a LSM-CU-A controller and is compatible with the Laser Scan Micrometer models LSM-30-A and LSM-02-A. For a complete system, a laser scan micrometer device, a controller, and an interface unit is required. This interface unit uses CC-Link IE TSN. Note that three other interface types are available for ordering to meet your system requirements.

• Communication standards CC-Link IE TSN
• Interface
  • D link: dual color LED1 indicator light (red/ green)
  • Error indicator: Single color LED1 indicator light (red)
  • Interface has a 2 channel RJ45 connector.
• Ethernet
  • Communication port: RJ45 x 2
  • Communication speed: 100 Mbps full duplex
  • Cable: Cat.5e or more STP cable
• CC-Link IE TSN function:
  • Class A remote station
  • Minimum cycle time: 1 msec

Refer to the Laser scan micrometer brochure for more details on the system configuration.

NOTE: This item is not returnable.
