Mitutoyo Laser Scan Micrometer Interface Unit LSM-PN-A PROFINET

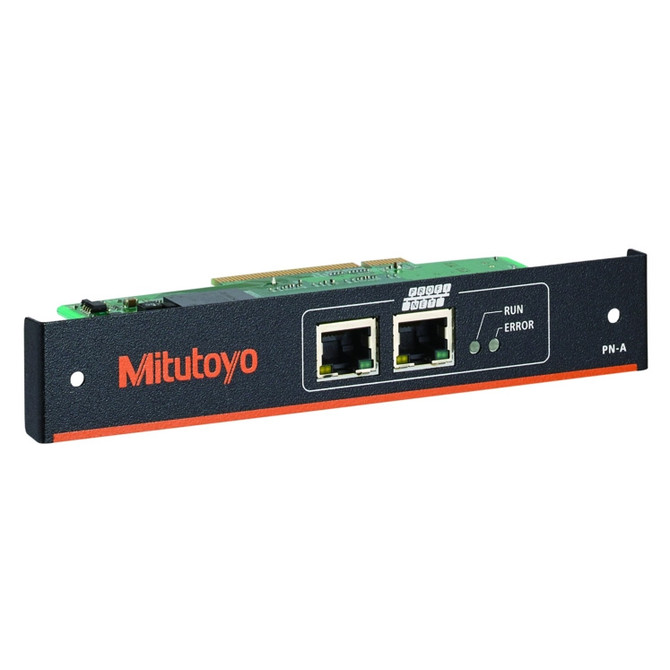

The Mitutoyo laser scan interface unit LSM-PN-A is designed to be inserted into a LSM-CU-A controller and is compatible with the Laser Scan Micrometer models LSM-30-A and LSM-02-A. For a complete system, a laser scan micrometer device, a controller, and an interface unit is required. This interface unit uses PROFINET. Note that three other interface types are available for ordering to meet your system requirements.

• Communication standards PROFINET
• Interface
  • Run indicator: dual color LED1 indicator light (red/ green)
  • Error indicator: dual color LED1 indicator light (red/ green)
  • Interface has a 2 channel RJ45 connector.
• Ethernet
  • Communication port: RJ45 x 2
  • Communication speed: 100 Mbps full duplex
  • Cable: Cat.5e or more STP cable
• PROFINET function:
  • PROFINET RT: Conformance class B PROFINET device, media redundancy protocol (MRP) client, multicast provider and subscriber
  • Minimum cycle time: 2 msec
  • Maximum number of connections (Application Relation, device access): 2
  • Number of Communication Relations per connected controller: 2 for cyclic data, 1 for parameter setting

Refer to the Laser scan micrometer brochure for more details on the system configuration.
