Inspectis F40s HD Pro Metrology Gantry System

Inspectis F40s HD Pro Metrology Gantry System

No reviews yet Write a Review

The Inspectis F40s HD Pro Metrology gantry system features the F40s HD digital microscope with 40:1 motorized zoom on an industrial grade XY travel table top ga…

SKU:

$18,588.00 - $19,825.00

Hurry up! Current stock:

Request a quote

Description

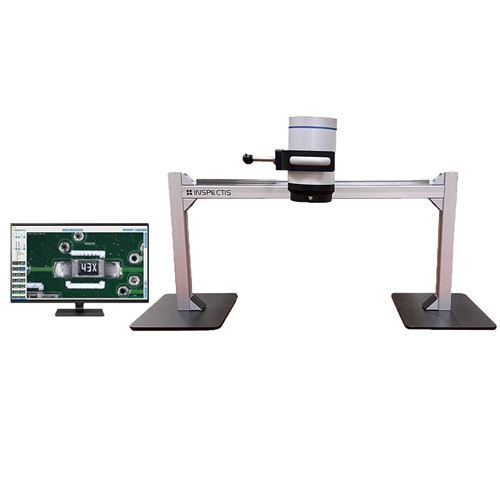

The Inspectis F40s HD Pro Metrology gantry system features the F40s HD digital microscope with 40:1 motorized zoom on an industrial grade XY travel table top gantry stand, 21" HD monitor, computer, and full HD HDMI USB3.0 image and capture device. This system includes Inspectis Pro Software with functions for advanced measurement, overlay 2D scale on live image, and overlay semi-transparent image on to a live image. Explore more features of Inspectis Pro Software.

Video Output: FHD 1080p at 60fps. HDMI type A female connector on rear panel.
Imager: 3.2 MP, 1920(H) x 1080(W) 16:9 format progressive scan
Working distance: 226mm
Lens: High resolution motorized 30:1 optical zoom with auto-focus and auto-brightness intensity control
Digital Zoom: 1.3x with 3D noise reduction
Camera and lens control: Auto-brightness, zoom, manual/ auto Focus, white balance. Optional Inspectis 2 Pedal Foot Switch and Inspectis Advanced Camera Remote Control can be purchased for hands free control of the camera. Hands free control requires both of these products.
Environmental Protection: Camera housing is hermetically sealed to prevent entry of dust or other contaminates. ESD protection built-in to camera housing.
Capture Device: USB image and video capture device for recording and storing images and videos.
Illumination: Inspectis White LED Ring Light with 8 high power LEDs with 5800 K color temperature and detachable diffuser. Illumination controls for soft, smooth light adjustment. The ring light is powered directly through the AUX output of the Inspectis digital microscope.
Stand: Industrial grade XY travel table top gantry stand available in two sizes with optional 4 direct tilt attachment:
- Standard: X-travel 100mm - 750mm / Y-travel 100mm - 550mm
- Long range Y- travel: X-travel 100mm - 750mm / Long range Y-travel 551mm - 800mm.

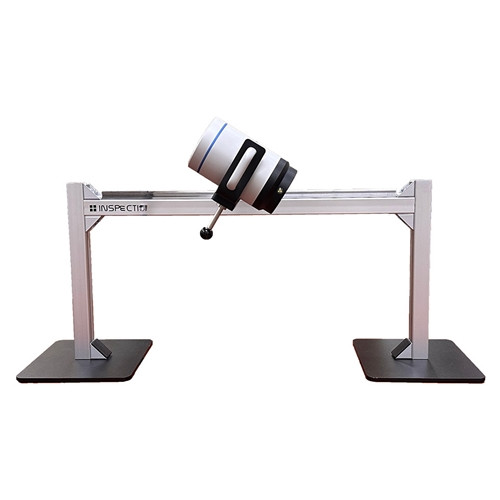

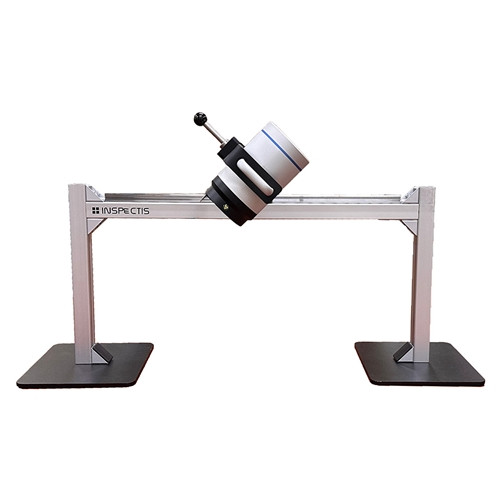

- Optional 4 direction tilt unit for +/- 30º slope angels. Designed for side viewing of samples.
- Larger stand sizes and motorized options are available. Contact Microscope World for details.
Computer / Monitor: Computer with 21" HD monitor with 1920 x 1080 resolution.
Software: Inspectis Pro Software includes all functions of Inspectis Basics Software plus:
- Overlay semi-transparent image to live image
- Advanced measurement: free-form area, length and perimeter measurement
- Measurement of circle, angle, curve, polygon
- Compare live and still images
- Overlay 2D scale on live image
- Report generator with included images and measurements
- Export measurements as TXT or Excel files
- Record video with audio
Input / Output: HDMI video output, 5PMiniDin power input, 8P MiniDin for communication.
Manufactured in Sweden.

Zoom Factor	Magnification on 21" LCD	Optical Magnification
1	1.9	0.9
2	3.3	1.6
5	8.1	3.9
10	16.0	7.7
15	23.9	11.5
20	31.6	15.2
25	39.3	18.9
30	47.4	22.8
35	57.4	27.6
40	71.5	34.4
40 w/ +1	89.2	42.9
40 w/ +2	103.9	50

NOTE: This item is not returnable.
