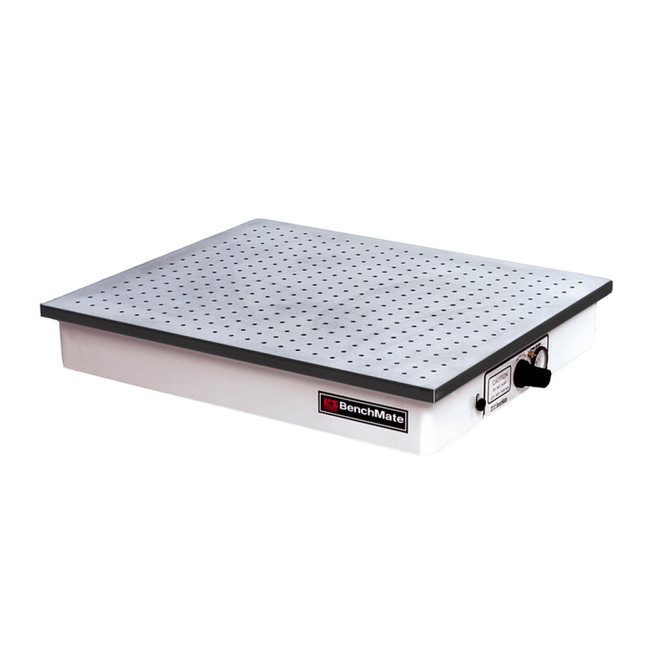

Benchmate Vibration Free Platform Passive Air 20" x 24"

The Benchmate vibration-free platform is ideal for sensitive table top laboratory equipment such as atomic force microscopes, microhardness testers, and other precision measuring and testing equipment. This platform has a passive air design, requiring periodic manual leveling and air refilling. Select from 5 different platform surface options when ordering.

• Dimensions: 20" x 24" x 4.4" (508mm x 609mm x 11mm)
• Net load capacity: Up to 150 lbs.

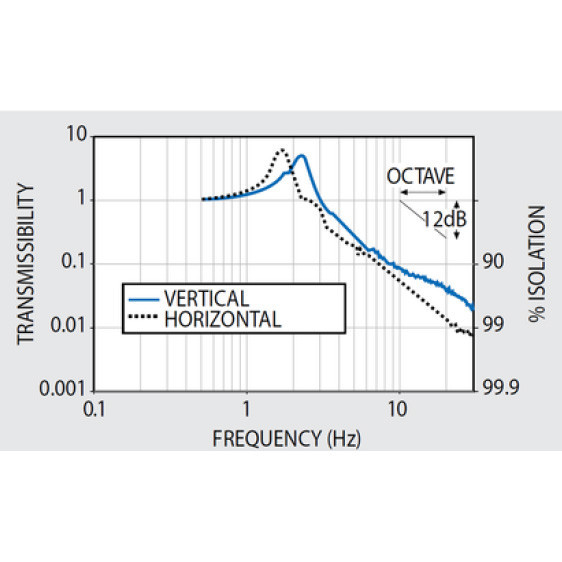

• Isolation efficiency at 10 Hz: Up to 95% vertical and horizontal (refer to graph with performance data)
• Air supply requirement: Passive air design requires platform to be periodically filled with air. (Pump not included.)
• Table top options:
  • White plastic laminate
  • Stainless steel (solid)
  • White anti-static laminate
  • Stainless steel with 1/4 - 20 holes x 1" centers
  • Stainless steel with M6 holes x 25mm centers
• Warranty: 1 year warranty covers defective workmanship and materials.

NOTE: This item is not returnable.
