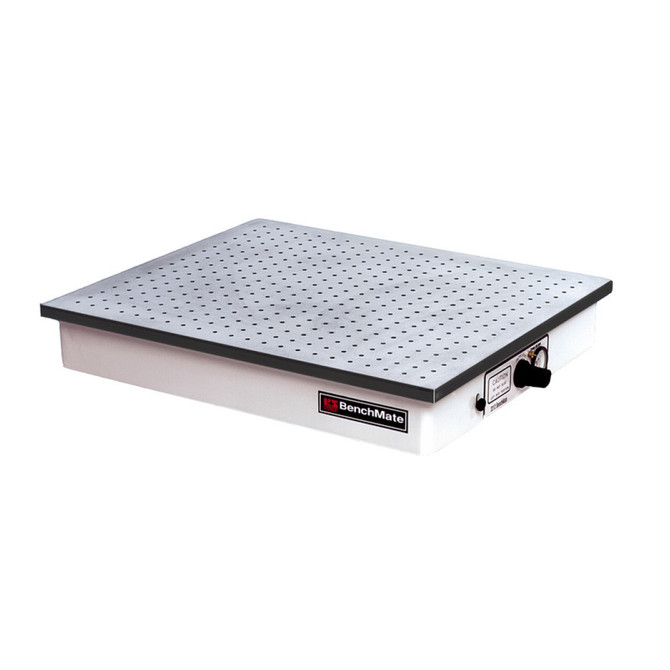

Benchmate Vibration Free Platform 16" x 19"

The Benchmate vibration-free platform is ideal for sensitive table top laboratory equipment such as atomic force microscopes, microhardness testers, and other precision measuring and testing equipment. This platform is self-leveling and requires connection to a source of compressed air. Select from 5 different platform surface options when ordering.

• Dimensions: 16" x 19" x 4.4" (406mm x 482mm x 11mm)
• Net load capacity: Up to 150 lbs.

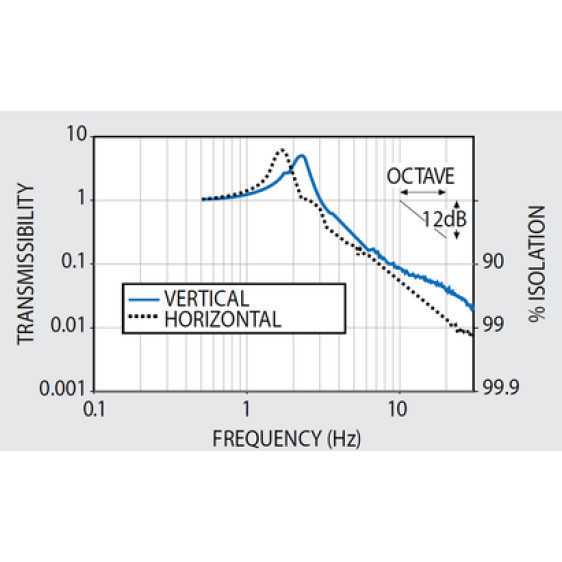

• Isolation efficiency at 10 Hz: Up to 95% vertical and horizontal (refer to graph with performance data)
• Air supply requirement (not included): 90 psi compressed air or nitrogen
• Table top options:
  • White plastic laminate
  • Stainless steel (solid)
  • White anti-static laminate
  • Stainless steel with 1/4 - 20 holes x 1" centers
  • Stainless steel with M6 holes x 25mm centers
• Warranty: 1 year warranty covers defective workmanship and materials.

NOTE: This item is not returnable.
