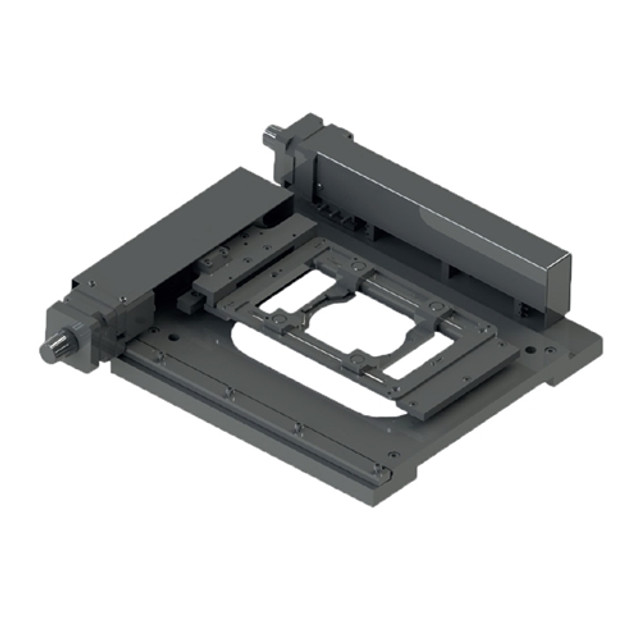

Ultra High Precision Linear Motorized Inverted Microscope Stage

The Prior Scientific HLD117 series of flat top stages with linear motor technology for inverted research microscopes have ultra quiet operation, super smooth movements, a flat top design with integrated 50  nanometer encoders standard. These stages are compatible with Prior NanoScan Piezo Z stages. The Ultra high precision linear motorized stages are available for the following microscopes:

• Leica DMi8, DMIR, DMI4000, DMI5000, DMI6000
• Nikon Ti, Ti2, Ts2R (note, stage fits Nikon sample holders, Prior adapter HLD324 is required to use Prior sample holders)
• Olympus IX53, 73, 83

Linear Motorized Stage Specifications:

• Travel: 120mm x 72mm XY travel (Leica) / 121mm x 81mm XY travel (Olympus and Nikon)
• Motor Type: DC Linear Servo
• Resolution: 0.05µm linear encoded
• XY Repeatability: 0.15µm
• Minimum Step Size (Resolution): 0.05µm
• Metric Accuracy (per mm of travel): 0.045µm
• Minimum Velocity: 1 micron/second
• Maximum Velocity: 300mm/second
• Squareness: 20 arc/second
• Motors: High precision linear DC servo
• Linear Slides: Precision 3mm crossed roller way
• Limit Switches: X and Y standard
• Stage Profile: 32.5mm (Leica), 45.35mm (Nikon), 41mm (Olympus)
• Weight: 7 kg (15.4 lbs)
• Max Load Capacity: 6 kg (13.2 lbs)
• Motorized Stage Accessories, available for purchase separately:
  • Four slide holder
  • Insert adapter
  • Glass plate
  • Filter paper holder
  • Microtiter plate holder
  • Rotating single slide holder
  • Low profile single slide holder
  • Petri dish holder
  • Universal specimen holder
  • Aluminum plate
• Warranty: 5 years

View the Leica DMI Microscopes Linear Motorized Stage Brochure

View the Nikon Ti Microscopes Linear Motorized Stage Brochure

View the Olympus IX3 Microscopes Linear Motorized Stage Brochure

NOTE: This item is not returnable.

Prior Scientific Part #HLD117DM, HLD117NN, HLD117IX.
