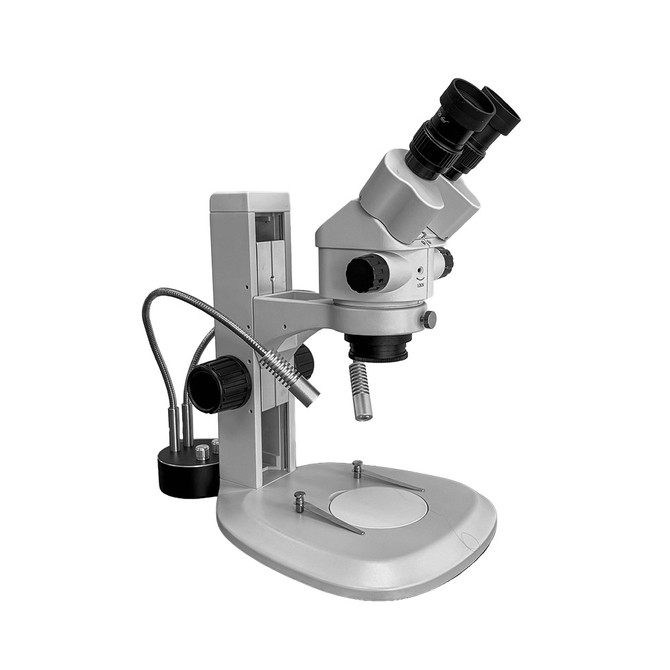

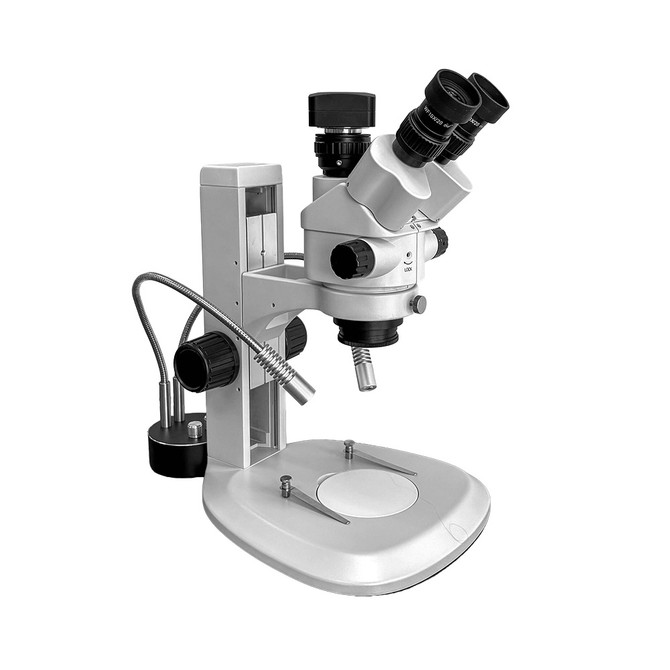

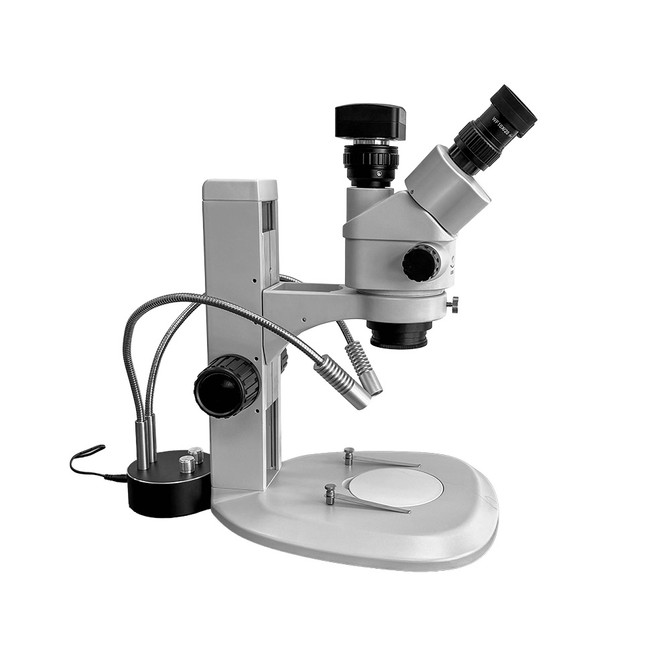

The Richter Optica S6-LDG stereo microscope has zoom magnification of 10x - 67x and includes an LED dual pipe illuminator. This system is available with a binocular or trinocular viewing head, and 10mp digital camera may also be added.
- Head: Your choice of binocular or trinocular body. Viewing head rotates 360°, locks in place by tightening set screw. Option to include a 5mp microscope digital camera with software and c-mount adapter when ordering.
- Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm to 75mm. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered separately.
- Objective Lenses: Zoom range of 0.7x - 4.5x.
- Zoom Ratio: 6.4:1
- Auxiliary Lens: Includes 1.5x Auxiliary Lens.
- Total Magnification: 10.5x - 67.5x.
- Stand: Low-profile post stand has plain white base that measures 320mm W x 260mm D (12.6" W x 10.2" D). Thickness of the base is 19.2mm (0.8"). Top of post on stand is ~350mm (13.8") high, and the maximum distance between the microscope head and the base is ~260mm (10.2").
- Working Distance: 100mm without using auxiliary lens, 45mm when using 1.5x auxiliary lens.
- Focusing: Rack & pinion focusing has slip clutch to protect mechanism against over-turning, and special tension adjustment.120mm focusing stroke.
- Illumination: LED high intensity dual pipe illuminator. Each pipe light contains 3w LED light. Bulb life expectancy is 20,000 hours. 110v~240v power supply. Each self-supporting dual pipe is 24" in length.
- Digital Option: If digital option is chosen when ordering, a 10mp camera and software for image capture and making measurements will be included. If you wish to calibrate the software for measurements you will need to purchase a stage micrometer separately.
- Warranty: 5 year warranty on microscope, 1 year warranty on LED light.
- Instruction Manual
Click here to see ideas of things to view with this microscope.
