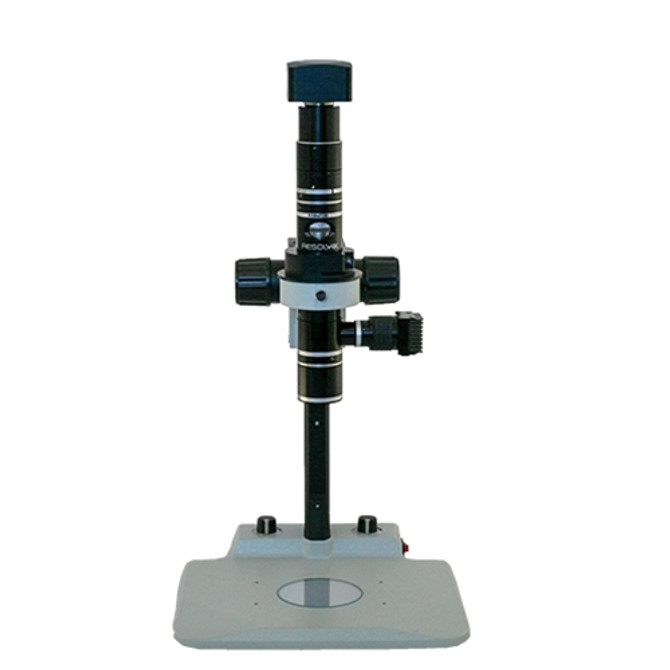

Navitar High Resolution Digital Filter Patch System

Navitar High Resolution Digital Filter Patch System

No reviews yet Write a Review

Navitar Resolve 4K Lens: Magnification range 0.64x - 4.5x. Camera Mount: Includes c-mount adapter to mount camera directly to the macro zoom lens. Focusing: Coa…

SKU:

$10,799.00 - $11,979.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

Navitar Resolve 4K Lens: Magnification range 0.64x - 4.5x.
Camera Mount: Includes c-mount adapter to mount camera directly to the macro zoom lens.
Focusing: Coaxial coarse and fine focusing, focus distance 375mm. Fine focus distance of 0.56mm per rotation. Focus knob tightness adjustable.
Stand: Track stand with LED illuminated base, coarse and fine focusing. 90~240V. Track is 520mm tall. Base is 320 x 316 x 21mm.
Specimen Stage: Includes black and white stage plate and glass stage plate (95mm diameter).
Magnification: If a 22" monitor is used magnification is 22x - 158x.
Field of View: 18mm - 3mm
Resolution: 3.5µm
Working Distance: 90mm
Illumination: Transmitted LED illumination. 4-Quadrant LED Ring Light.
Computer & Monitor: Computer system and monitor are not included.
Camera: Your choice of back-illuminated sensor USB3 camera. Select megapixels when ordering:
- 6.3 Megapixels
- 12 Megapixels
- 20 Megapixels
Software: Includes image management software, image capture, video capture, measurement (PC only), extended depth of focus.
Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope. Calibrating your software with the microscope requires use of a stage micrometer. A stage micrometer is available for purchase separately.
Warranty: Navitar Resolv4K lens has a lifetime limited warranty. Camera has a 1-year warranty.
