Mitutoyo Square Master Squareness and Straightness Measuring Instrument 250mm Vertical Travel 311-225
Mitutoyo Square Master Squareness and Straightness Measuring Instrument 250mm Vertical Travel 311-225
Mitutoyo Square Master Squareness and Straightness Measuring Instrument 250mm Vertical Travel 311-225

Mitutoyo Square Master Squareness and Straightness Measuring Instrument 250mm Vertical Travel

No reviews yet Write a Review
This squareness and straightness master uses a dial test indicator to measure straightness and squareness with accuracy and efficiency by moving a lever. The in…

Read more
SKU: 311-225
$8,095.00
Hurry up! Current stock:
Request a quote
Description

This squareness and straightness master uses a dial test indicator to measure straightness and squareness with accuracy and efficiency by moving a lever. The instrument is made of case iron housing for stable height measurement. Squareness (perpendicularity) and straightness measurements can be performed quickly.

This item does not include free shipping. Please request a quote so we can provide shipment cost.

  • Vertical Travel 250mm
  • Squareness 6µm
  • Straightness 2.5µm
  • Range 0.2mm
  • Graduation 0.002mm
  • Accuracy +/-3µm
  • Includes Dial test indicator, micrometer, inspection certificate, fitted wooden case

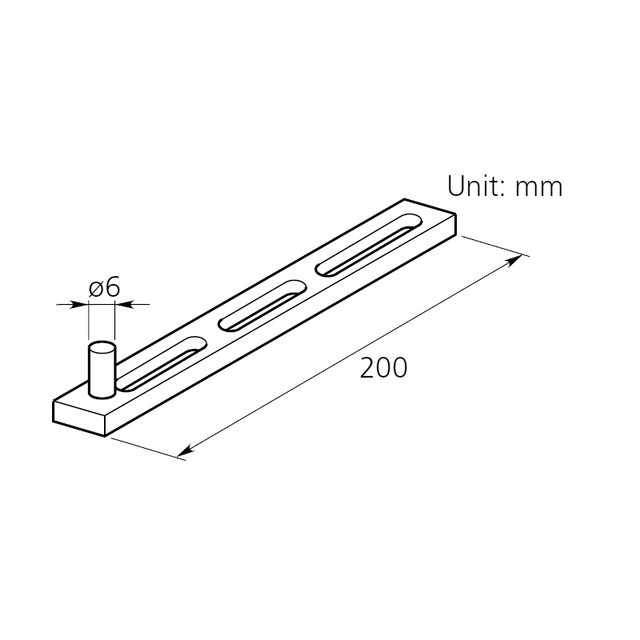

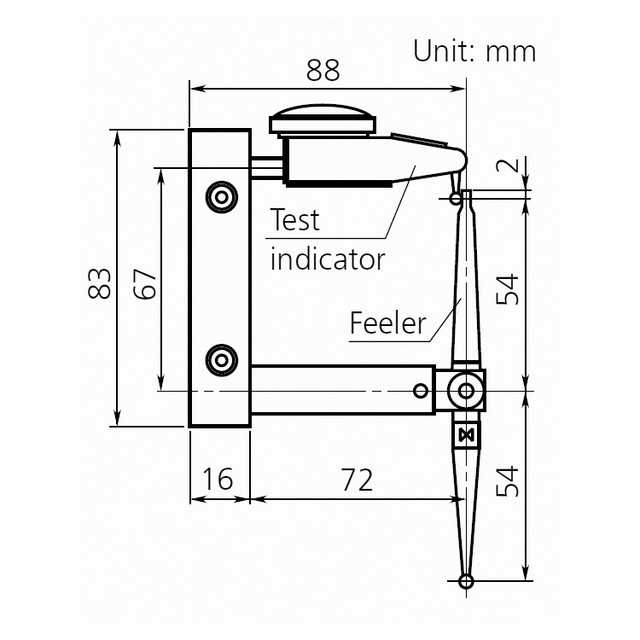

  • Optional Accessories Adjustable holder, extension holder, feeler
  • Weight 36lbs (16.2 kg)

Mitutoyo part # 311-225

NOTE: This item is not returnable.

Customer reviews

This product hasn't received any reviews yet. Be the first to review this product!

Write a Reviews

Description

This squareness and straightness master uses a dial test indicator to measure straightness and squareness with accuracy and efficiency by moving a lever. The instrument is made of case iron housing for stable height measurement. Squareness (perpendicularity) and straightness measurements can be performed quickly.

This item does not include free shipping. Please request a quote so we can provide shipment cost.

  • Vertical Travel 250mm
  • Squareness 6µm
  • Straightness 2.5µm
  • Range 0.2mm
  • Graduation 0.002mm
  • Accuracy +/-3µm
  • Includes Dial test indicator, micrometer, inspection certificate, fitted wooden case
  • Optional Accessories Adjustable holder, extension holder, feeler
  • Weight 36lbs (16.2 kg)

Mitutoyo part # 311-225

NOTE: This item is not returnable.
