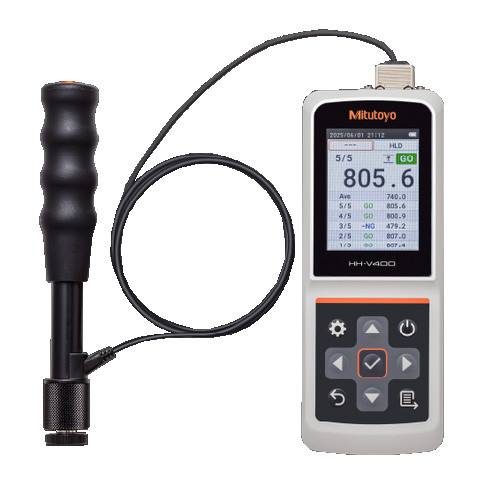

Mitutoyo Portable Rebound Hardness Tester HH-V400

The HH-V400 portable rebound-type hardness tester is designed to test the hardness of metals. Users load the impact hammer and hit a button that ejects a steel ball at the work-piece surface. The hardness tester measures the rebound velocity of the steel ball after it hits the test material surface, thereby calculating a HL hardness value. This value can be converted to other hardness scales as required.

• Detector: Detector D is a standard type measuring Ø28 x 174.5 mm with a tip diameter of Ø22 mm. Has impact hammer and carbide ball at tip. Other detector types are available for purchase separately.
• Display Unit: RGB Color LCD with 2.83" screen
• Testing hardness and range: Leeb 100.0-999.9 HLD
• Testing direction: Omnidirectional (with an automatic angle-correcting function)
• Hardness scale conversion function: (For reference; only Leeb hardness values are guaranteed.)
  • Vickers 43-950HV Resolution
  • Brinell 20-655 HB
  • Rockwell C 19.3-68.2 HRC
  • Rockwell B 13.5-101.7 HRB
  • Shore 13.2-99.3 HS (ASTM)
  • Tensile Strength 390-1999 MPa
• Functions: Auto angle correction, offset setting, OK/NG judgment function, acceptance judgment, hardness scale conversion, data memory storage (up to 1800 points), statistical calculation function, eco mode, auto power off, backlight
• Testable Workpiece Limits Minimum 5mm or more in thickness and 5kg or more in mass. Test points must be 5mm or more from the edge of the sample with 3mm between each of the tested points. Surface roughness of samples: Ra 2.0 or less.
• Power Supply AC adapter, built in battery (Ni-MH) with up to 8 hours of operation after 100 minutes of charging
• Size / Weight Display unit 174 x 68 x 32mm, ~250g, Detector Ø28 x 175mm, ~150g, excluding cable
• View the HH-V400 brochure.

NOTE: This item is not returnable.
