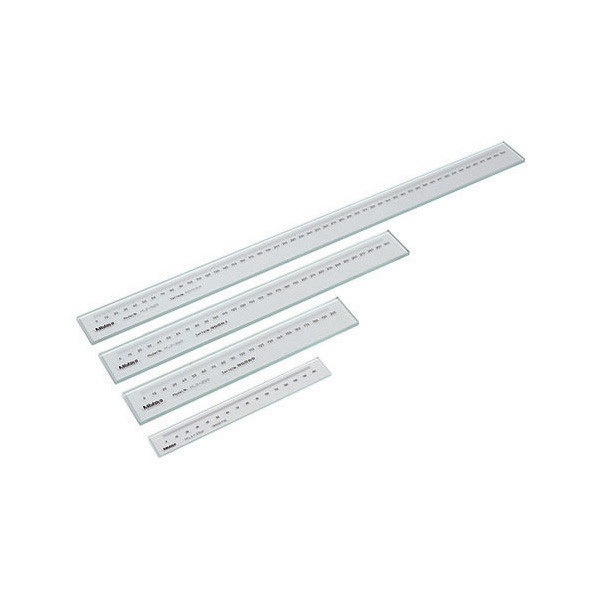

Mitutoyo Glass Working Standard Scale 100mm / 0.1mm Graduation

Name: Mitutoyo Glass Working Standard Scale 100mm / 0.1mm Graduation
SKU: 182-512-10
Price: 1104 USD
Availability: InStock

No reviews yet Write a Review

This high precision glass scale is ideal for checking magnification accuracy of profile projectors and microscopes, as well as the table feeding accuracy of mea…

SKU: 182-512-10

Length: 100mm

Measurement: Metric

$1,104.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

This high precision glass scale is ideal for checking magnification accuracy of profile projectors and microscopes, as well as the table feeding accuracy of measuring equipment.

Range: 0-100mm
Accuracy at 20º C: (1.5+2L/1000)µm, L= measured length (mm)

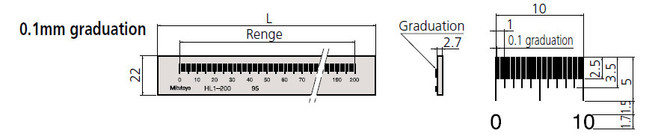

Graduation: 0.1mm
Graduation Thickness: 20µm
Glass Material: Sodium glass
Thermal Expansion Coefficient: 8.5 x 10^-6/K
Weight: 0.24kg (0.53 lbs)
Dimensions: 125mm L

NOTE: This item is not returnable.
