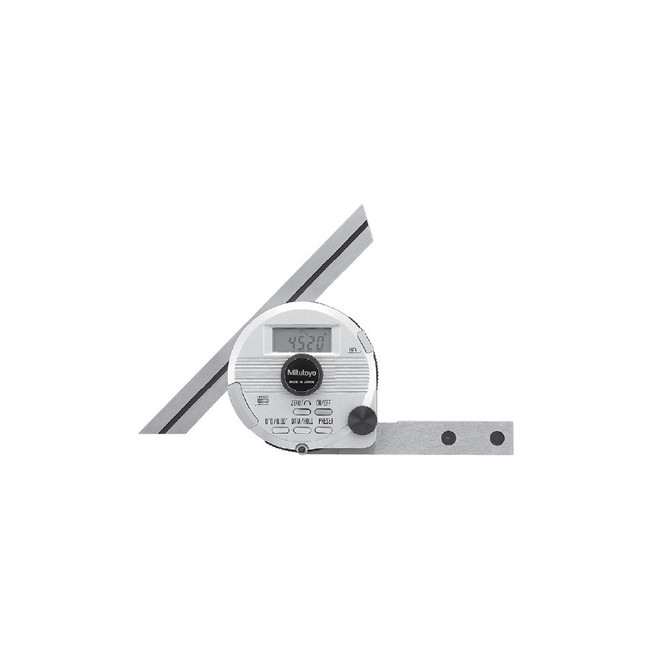

Mitutoyo Digital Universal Protractor with 150mm Blade

This Mitutoyo digital universal protractor is used for the precise reading of angles on workpiece features, or setting angles on machine tools. This digital universal protractor has a data output function that makes it easy to see the statistical data. The digital protractor can be attached to height gages.

• Measurement: Inch / Metric measuring range -360º ~ +360º
• Digital Setp: 1' (0.01º)
• Blade Length: 150mm
• Max Permissible Error: 2' (0.03º)
• Resolution: 1' (0.01')
• Accuracy: +/- 2(+/-0.03')
• Repeatability: 1' (0.01º)
• Battery Life: Appx 2000 hrs
• Power: On/Off Switch
• Dust / Water Protection Level: IP40
• Functions: Data output cable with hold display value, zero set, and preset
• Max Response Speed: 3 rps
• Power Supply: 1 Battery CR-2032
• Included: Delivered in box with CR-2032 battery, and holder for height gauge
• Display: LCD with character height 6.5mm
• Weight: 662g (1.5 lbs)

Mitutoyo part #: 187-501

NOTE: This item is not returnable.
