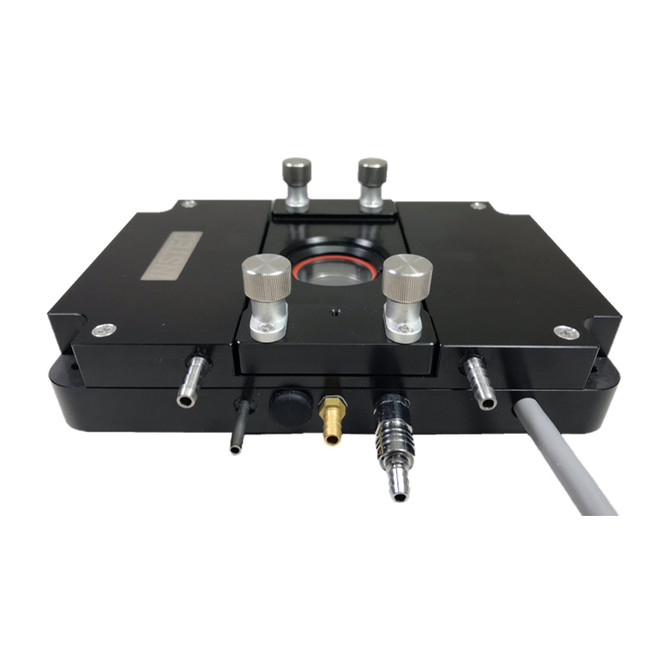

Inverted Microscope Thermoelectric Stage Ø40.5mm for 35mm Petri Dishes

This thermoelectric heater/cooler (Peltier) thermal stage is for inverted microscopes and features a gas-tight sample chamber, thermoelectric temperature control -25°C - 120°C without the use of cryogens. Designed for samples in petri dishes up to Ø40.5mm or 25mm x 75mm glass microscope slides. This dual thermoelectric heating and cooling stage is ideal for cell culturing, biology, and thermal microscopy for inverted microscopes.

• Sample Area Ø40.5mm to fit 35mm petri dishes, option for 25mm x 75mm glass slides
• Temperature Control Range -20°C - 120°C
• Minimum Temperature -20°C with C100W, -25°C with upgraded CW5000 with 5°C coolant
• Maximum Temperature 90°C, with optional upgrade to 120°C
• Software Windows software to record and export temperature time data
• Frame/TEC Cooling Integrated TEC cooling with included C100W water-cooler. Optional chiller upgrade for increased temperature range.
• Environmental Control Sealed chamber for positive pressure gas purge.
• Optical Access Reflected and transmitted capability
• Minimum Objective Working Distance 5.4mm
• Minimum Condenser Working Distance 22.8mm
• Mounting Base model includes holes on frame. Horizontal mounting adapters for specific instruments available on request.
• Frame Dimensions 160mm x 110mm x 40mm
• Weight 1000g
• Manufacturer Made in USA. Custom made-to-order, lead time is 10-12 weeks.

Heating and cooling stage part #: TSA12Gi

NOTE: This item is not returnable.
