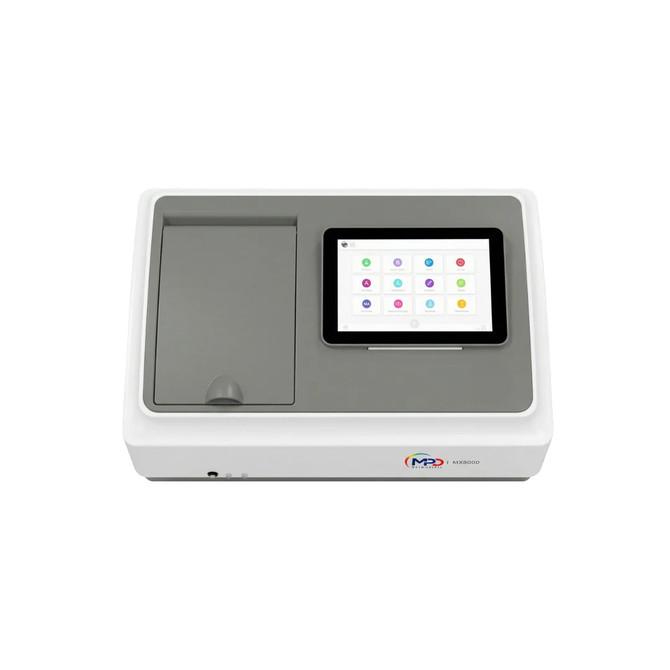

This research-grade double-beam UV-Vis spectrophotometer with its narrow 1nm spectral bandwidth enables superior resolution of closely spaced spectral features. Covering 190–1100 nm with 0.3 nm wavelength resolution and 1nm spectral bandwidth, it meets the demands of pharmaceutical analysis, environmental testing, and materials characterization. 21 CFR Part 11 compliant software is fully compliant with pharmacopoeia standards, featuring comprehensive GLP/GMP functionality and secure data traceability, audit trails, and user management.
- Visible Range 190-1100nm
- Resolution 0.1nm wavelength resolution
- Spectral Bandwidth 1nm, ±0.3nm wavelength accuracy, ≤0.1nm repeatability
- Wavelength Swing Speed 10,000 nm/min for rapid wavelength changes between measurements
- Spectrum Scanning 20-3,200nm/min variable speed
- Optical System Double beam
- Light Source Flashing Xenon
- Detector Dual Silicon photodiode
- Sample Holder 10mm 1-cell manual charger. Wide sample room accommodates 5-100mm sample holders and a full range of accessories.
- Applications Regulated environments with 21 CFR / GLP/GMP compliance for FDA-regulated and pharmacopoeia workflows is required. Material identification with full-spectrum scanning and library matching for material characterization. Process monitoring with time-scan and kinetics modules for continuous process observation. DNA/Protein analysis nucleic acid and protein quantification with 7 built-in methods. Routine and compliance-driven quality control in pharmaceutical, chemical, and material labs. Advanced analytical work demanding high spectral resolution and reproducibility in research and development.
- Display 10.1" IPS 1280x800 Color touchscreen tablet
- Measurement Modes Photometry, Quantitation, Spectrum Scanning, Kinetics, Time Scan, Multi-Wavelength, DNA/Protein, Custom Method. View the chart below for further information.
- Storage 128 GB built-in + USB/SD/Network
- Interface USB-A x 3, USB-B (PC) x 1, RJ-45 (Ethernet) x 1, HDMI x 1, VGA x 1, WiFi
- Dimensions 20.2" W x 15" D x 8.5" H, 17.6lbs.
- Power Supply 110~240V
- Certifications FDA Registered, CE
- Warranty 3 Years
| Measurement Module |
Description |
| Photometry |
Single-wavelength absorbance, transmittance, or custom coefficient measurement. |
| Multi-Wavelength |
Simultaneous measurement at up to 20 wavelengths with custom formula support. |
| Kinetics |
Time-based absorbance rate measurement with automatic kinetic rate calculation. |
| Time Scan |
Continuous photometric monitoring over an unlimited duration. |
| Quantitation |
Standard curve-based concentration measurement with multiple calibration methods. |
| DNA/Protein (Biological Method) |
7 built-in methods plus custom calculations for nucleic acids and proteins. |
| Spectrum Scanning |
Full spectral curve acquisition with peak detection and data processing tools. |
| Formula Editor |
Create and store custom calculation formulas for use across modules. |
View the MX Series Spectrophotometers Brochure
View the MX8000 Spectrophotometer Datasheet
Part # MX8000
This item is not returnable.
