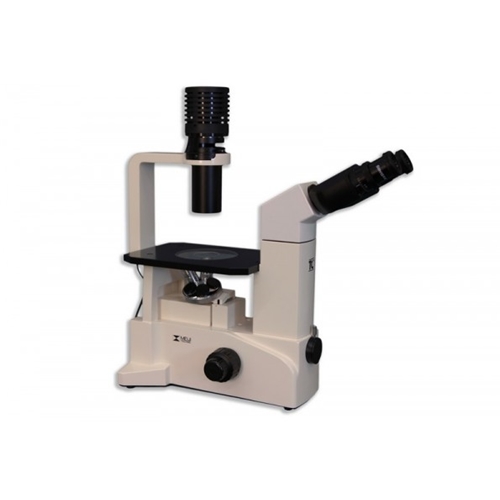

Meiji TC5100 Inverted Biological Microscope

Meiji TC5100 Inverted Biological Microscope
SKU:TC5100
Regular Price: $4,305.00
On Sale For: $3,875.00

Inverted Microscope - Meiji TC5100 - Inverted Biological Microscope

The Meiji Inverted biological microscope with infinity corrected optical system offers quality optics at an affordable price. Inverted microscope includes the following:

  • Objective Lenses: TC plan achromat infinity corrected long working distance objectives - LWD 10x (WD = 7.6mm) and LWD 20x (WD = 7.0mm). Mounted in quintuple nosepiece.
  • Eyepieces: Binocular Siedentopf head, inclined at 30°. Interpupilliary distance is adjustable from 53mm to 75mm. A graduated diopter adjustment is provided on the left eyetube. Includes paired SWH10x widefield high eyepoint eyepieces, FN 22 with a 25mm reticle mount. Optional SWH15x, SWH20x and SWH10x-F focusing eyepieces are available. Trinocular version available as well.
  • Total Magnification: 100x, 200x.
  • Specimen Stage: 180mm (X) x 245mm (Y) plain stage with replaceable glass insert with 45mm opening. Optional attachable mechanical stage (MA380/05) and a variety of specimen holders are available.
  • Focusing: Ergonomically low-positioned, coaxial, coarse and fine focus knobs with adjustable tension control. Range of travel is 9mm total - 1mm up and 8mm down. Rotations of fine focus is 0.2mm per revolution.
  • Illumination: Koehler 6v, 30w halogen lamp without iris. An aspheric condenser lens, a diffusion filter and a heat absorbing filter are also incorporated into the lamphouse. A lever-type iris diaphragm is provided for aperture control.
  • Light Focusing: Extra long working distance condenser, NA 0.30, WD 73mm. Optional condenser with NA 0.55, WD 20.5mm is available for more demanding work with 40x objectives (MA854).
  • Body: Chemical resistant baked enamel finish. Automatic voltage sensing power supply, removeable power cord.
  • Photo Port: Front mounted camera port suitable for CCD, 35mm or digital cameras. Optional camera adapters are available.
  • Size & Weight: 411mm (H) x 485mm (L) x 220mm (W), 23 lbs.
  • Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days.
