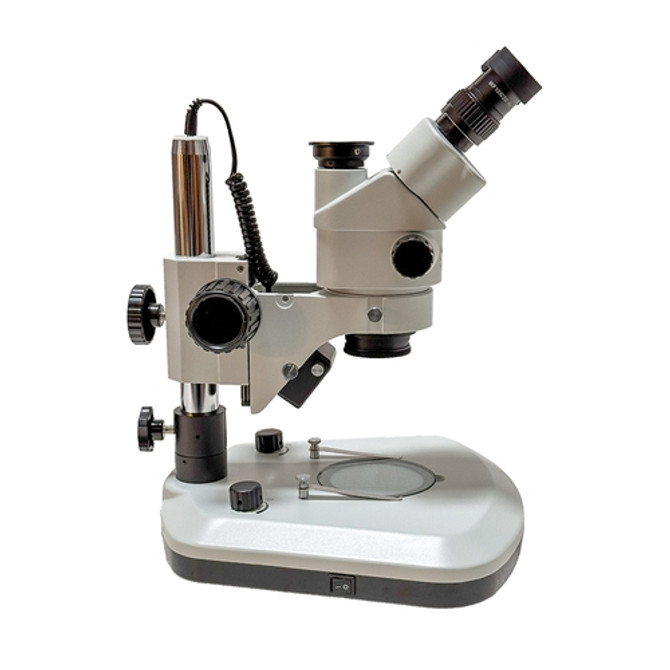

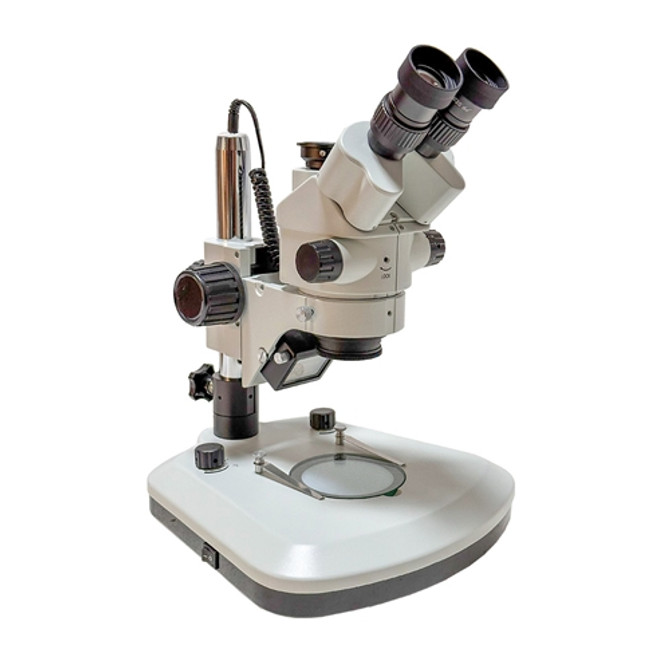

Richter Optica S6T Basic Stereo Zoom Trinocular Microscope 7x-45x

The Richter Optica S6T trinocular stereo microscope has zoom magnification of 7x - 45x and is on a light dual LED track stand with high intensity LED lights.

Head: Trinocular body. Viewing head rotates 360°, locks in place by tightening set screw.

Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm to 75mm. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered below.

Objective Lenses:  Zoom range of 0.7x - 4.5x.

Zoom Ratio: 6.4:1

Total Magnification: 7x - 45x. For alternate magnifications, eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details.

Specimen Stage: Supplied with 95mm a frosted plastic stage plate and a black/white stage plate. If a frosted glass stage plate is required, select "glass stage plate" option when ordering. Two locked-on stage clips.

Stand: Track stand has built in top and bottom LED illuminators. Top illuminator has its own intensity control and each light operates independently of the other. Includes two stage clips. CE certified, 115~230V.

Working Distance: 100mm

Maximum sample height: 135mm (5.31")

Focusing: Coarse focus adjustment.

Illumination: Transmitted and reflected LED illumination with intensity control and on/off switch for each light. Top light has bright individual LED lights.

Size & Weight: 9.5" W x 11.5" D, 15" H, 10 lbs.

Warranty: 5 Year warranty.

Includes: Dust Cover.

Click here for Instruction Manual
