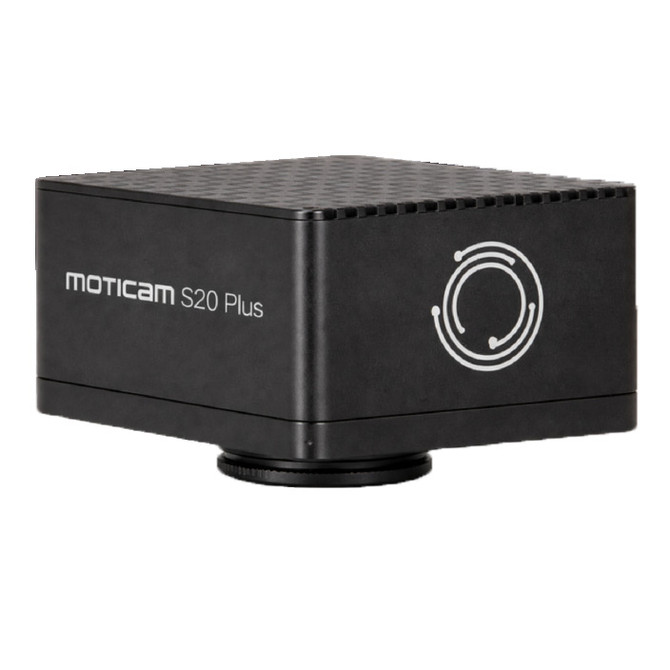

Moticam S20 Plus 20mp Microscope Camera

The Moticam S20 Plus is a 20 megapixel microscope camera that connects to a computer via USB 3.1.

View a chart comparing the Moticam S Series cameras here.

Camera Specifications

• Sensor: 20 megapixels 1" scientific grade SCMOS sensor
• Pixel Size: 2.4 µm x 2.4 µm
• Live Display Mode Via USB: 5472 x 3648 pixels
• Maximum Frame Rate: 5440 x 3648 @ 15 frames per second (fps), 2736 x 1824 at 50 fps, 1824 x 1216 at 60 fps
• Microscope Connection: C-mount thread for connecting to your microscope-specific c-mount adapter.

Warranty: 1-year limited warranty

Includes: Camera, USB3.1 cable, Calibration slide, and Motic Images Plus 3.1 software

View Moticam S20 Plus Data Sheet

Computer Requirements

• Higher than Microsoft Windows 7/8/10, MAC OSX10.9 and Linux
• USB 3.1 integrated, no extra power supply required
• 2GHz Dualcore, RAM memory 2GB and Video Memory Min 512MB
