PAX-it Image Analysis Software

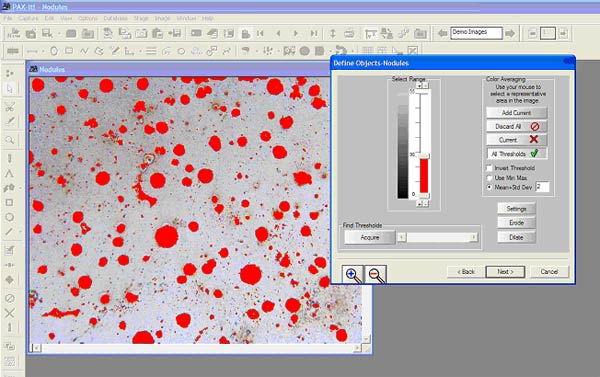

The PAX-it image analysis software is made for use with the PAX-it microscope cameras and provides the most commonly sought measurement tools along with all features of the PAX-it basic measurement software. PAX-it image analysis tools allow you to quickly and easily detect objects by shape, size, color or other criteria. Filters can be applied to disregard objects of certain shapes or to split the results into size categories.

PAX-it Image Analysis Software for Microscopy
For material science specific routines are built for imaging applications including coating thickness detection, porosity analysis, nodularity analysis, ferrite-pearlite calculations, grain sizing, flake size distribution and more. You can also design your own routine for area fractions or detection of objects via thresholding, for a customized analysis and report that is specific to your lab's needs.

Image Analysis Software Features:

  • Nodularity
  • Particle Size Analysis
  • Grain Sizing
  • Plating Thickness / Coating Thickness
  • Ferrite / Pearlite
  • Porosity
  • Area Fractions
  • Morphometry
  • Optical Profiles
  • Critical Dimension Metrology
  • Flake Size and Classification
  • Data Processing & Reporting
  • Object Shape and Size Categories
