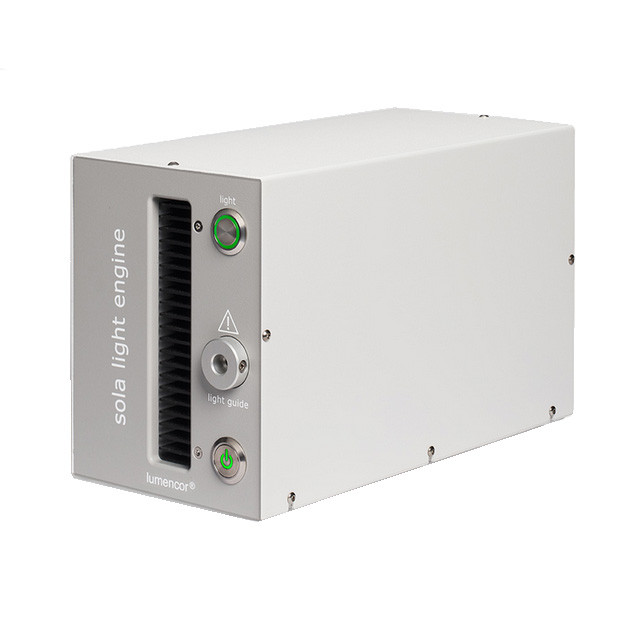

SOLA LED Light Engine

The SOLA LED Light Engine is distinguished by spectral distribution differences in its light output. The SOLA Light Engine has white light output for excitation of DAPI, GFP/FITC, YFP, Cy3, mCherry, Cy5 and spectrally similar fluorophores. The SOLA light engine is easy to operate and have a rapid warm up time.

• Sources: 4 solid-state sources operating simultaneously to produce white light
• Wavelength Range: 360-660nm
• Light Guide: 3mm diameter liquid light guide (2m in length) is included.
• Collimator: Available separately for all major microscope brands.
• Control Interface: Manual light output On/off switch. Optional foot pedal is available here. USB-B input port allows for remote control by light engine control pod of PC. BNC input post is for TTL-activated electronic shutter.
• Size/Weight: W x L x H = 125mm x 263mm x 163mm (4.9" x 10.4" x 6.4"), 4.3 kg (9.5lb)
• Warranty: 2 years
• Required: A complete set of excitation and emission filters.
• Certifications: TUV, CE, RoHS, LEED

View SOLA datasheet
