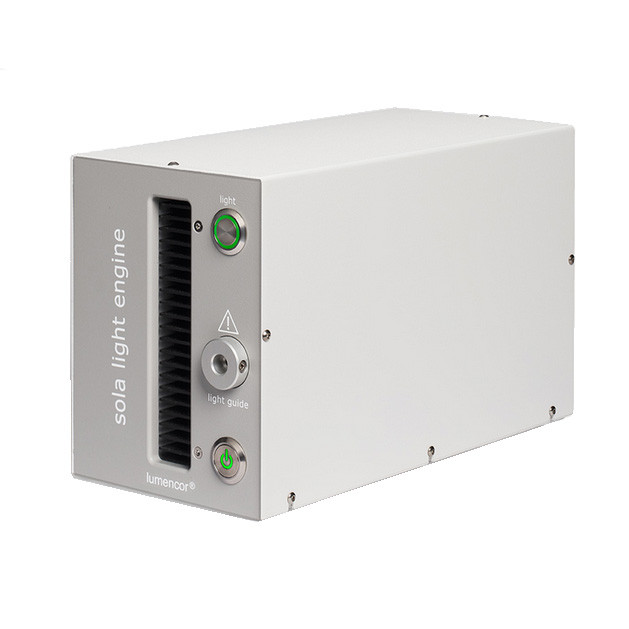

The SOLA FISH LED Light Engine provides output that is spectrally optimized relative to the excitation characteristics of fluorescence in situ hybridization (FISH) probes, delivering sufficient intensity to generate readily detectable fluorescence from weak hybridization signals.
- Sources: 5 solid-state sources operating simultaneously to produce white light

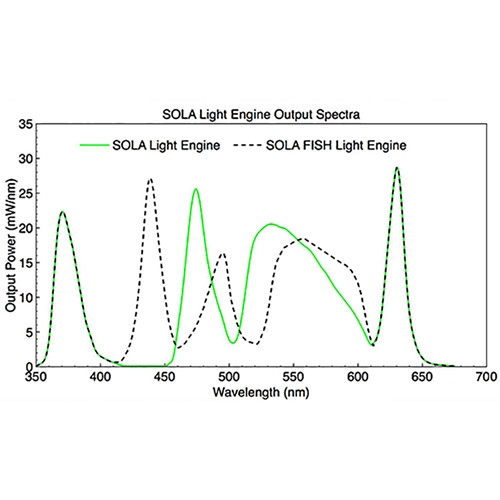

- Wavelength Range: 360 - 660nm unfiltered output spectrum optimized for fluorescence in situ hybridization (FISH) applications.
- Light Guide: 3mm diameter liquid light guide (2m in length)
- Collimator: Available separately for all major microscope brands.
- Control Interface: USB connector for remote control by light engine control pod or host computer. BNC input port for TTL-activated electronic shutter. Manual on/off, foot pedal plug. Foot pedal and control pod sold separately.
- Warmup Time: 1 second.
- Size/Weight: W x L x H = 125mm x 263mm x 163mm (4.9" x 10.4" x 6.4"), 4.3 kg (9.5lb)
- Warranty: 2 years
- Required: A complete set of excitation and emission filters.
- Certifications: TUV, CE, RoHS, LEED
View the SOLA datasheet here
Lumencor Part #: 90-10653
