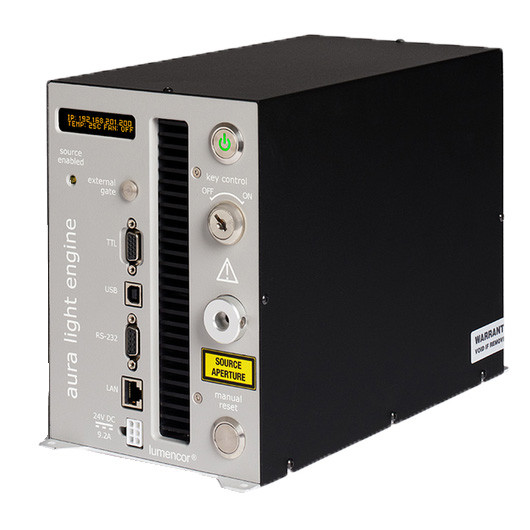

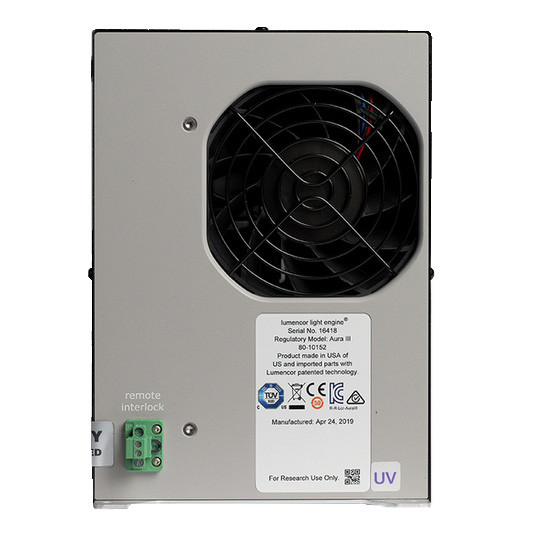

The AURA light engine is the ideal OEM illumination platform for biophotonics. The AURA light engine provides a flexible platform for integration of solid state light sources in customized configurations.
- Light Sources: Up to 5 independently selectable solid-state light sources. Options are as follows:
- UVCG: Ultraviolet, violet, cyan, and green light sources with integral bandpass filters: 348/30, 380/20, 475/28, and 555/28 nm
- UCGRN: Ultraviolet, cyan, green, red, and near IR. Integral bandpass filters: 375/30, 475/28, 555/28, 635/22, and 730/40 nm.
- VCGRN: Violet, cyan, green, red, and nIR. Integral bandpass filters: 395/25, 475/28, 555/28, 635/22, and 730/40 nm.
- Output Spectrum: Source output spectra refined using integrated bandpass filters.
- Output Power: 200-500mW per source channel (depending on filter bandpass and light guide delivery)
- Light Delivery: Has output adapter that fits a 3mm liquid light guide. The liquid light guide is available separately.
- Control Interfaces: Has serial (RS-232/USB), ethernet, and TTL ports. RJ45 ethernet and USB A-to-USB B control cables are included.
- Speed: TTL-triggered source channel switching up to 5 kHz.
- Power Requirements: 220 W, 24V, 9.2A DC power supply included.
- Size/Weight: W x L x H = 145mm x 263mm x 203mm (5.7" x 10.4" x 8"), 6.2 kg (13.6 lb)
- Warranty: 24 Months
- Includes: USB control cable, DC power supply, and region-specific power cord
- Optional Accessories: Light engine controller pod (83-10007) is available separately.
View the AURA datasheet.
NOTE: This item is not returnable.
