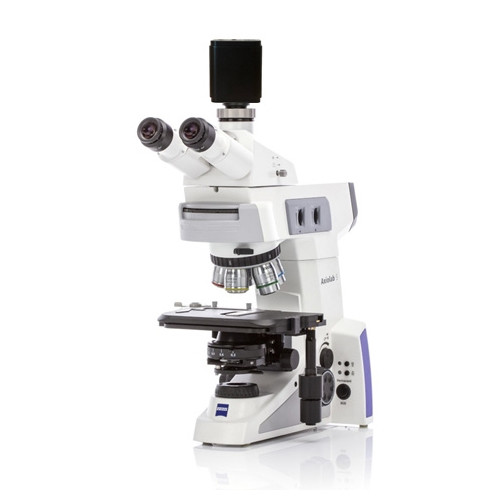

Zeiss Axiolab 5 Digital Metallurgical Microscope

This Zeiss Axiolab 5 Digital metallurgical microscope includes a 4K HD digtial camera with HDMI and USB3 output for high quality image capture.

• Objective Lenses: Infinity corrected EC Epiplan Achromat 5x, 10x, 20x objectives.
  • EC Epiplan HD 5x/0.13, WD = 11.8mm
  • EC Epiplan HD 10x/0.25, WD = 11mm
  • EC Epiplan HD 20x/0.40, WD = 3.2mm
• Viewing Head: Ergonomic trinocular head adjustable 5-30º with 100:0/0:100 photo tube upright image.
• Eyepieces: Widefield 10x / 22 focusing eyepieces. Diopter adjustment +/-5. Interpupillary distance adjustable from 48-75mm. Includes eyecups.
• Total Magnification: 50x, 100x, 200x.
• Specimen Stage:  Mechanical stage with hardcoat anodized surface 75mm x 30mm X-Y Movement with 220mm x 150mm stage plate.
• Focusing: Coarse and fine focusing. Z focus range is 15mm.
• Condenser: None included.
• Illumination: Reflected light illumination white LED 10w. 100~240V. ECO mode and light management control button. Certified RoHS, CE, CSA. Dual goose neck LED illuminator provided.
• Stand Features: Materials stand includes 4x encoded reflector turret. 5-Postition nosepiece for brightfield/darkfield is encoded. Includes reflector module for brightfield reflected light.
• Camera: The HDCAM7 is a 4K HD 2160p scientific grade camera that has all in one camera HDMI + USB3 + SD Card / USB Flash Drive. Includes c-mount adapter and image processing software.
• Size & Weight: 9" W x 18.6" H x 18.8" D, 24 lb.
• Warranty: 1 year.
• Includes: Dust cover.

View the Axiolab 5 Materials Microscope Brochure
