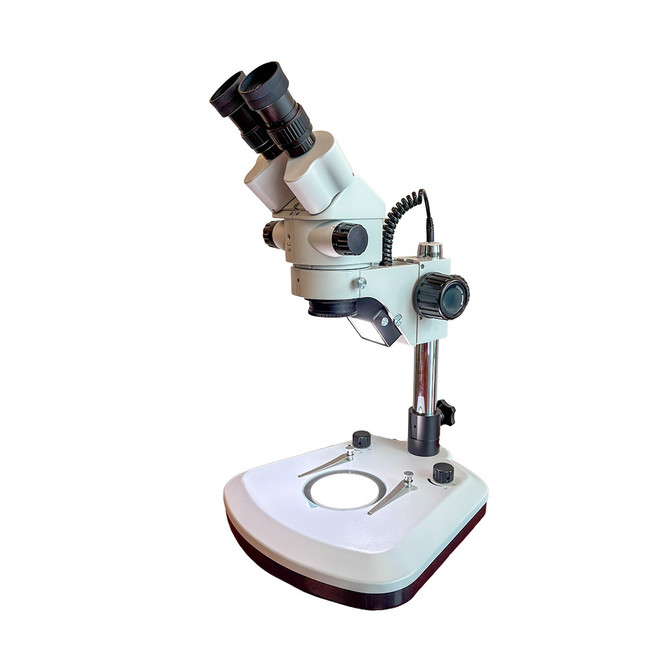

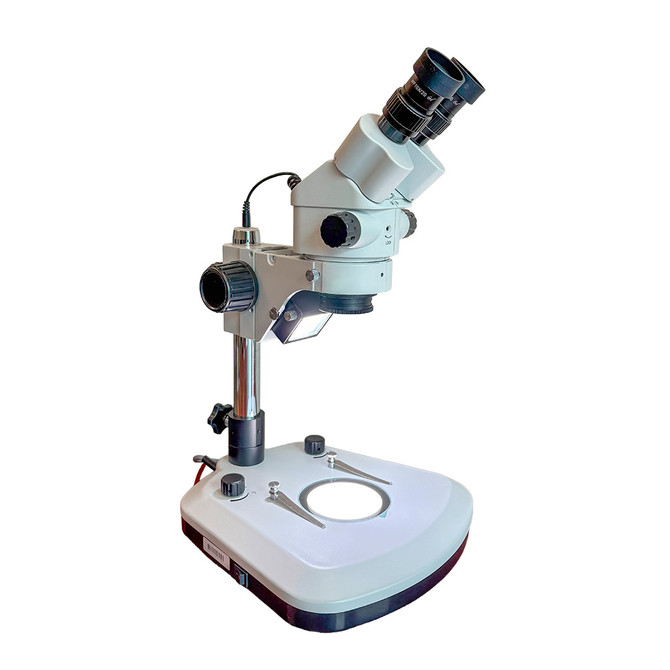

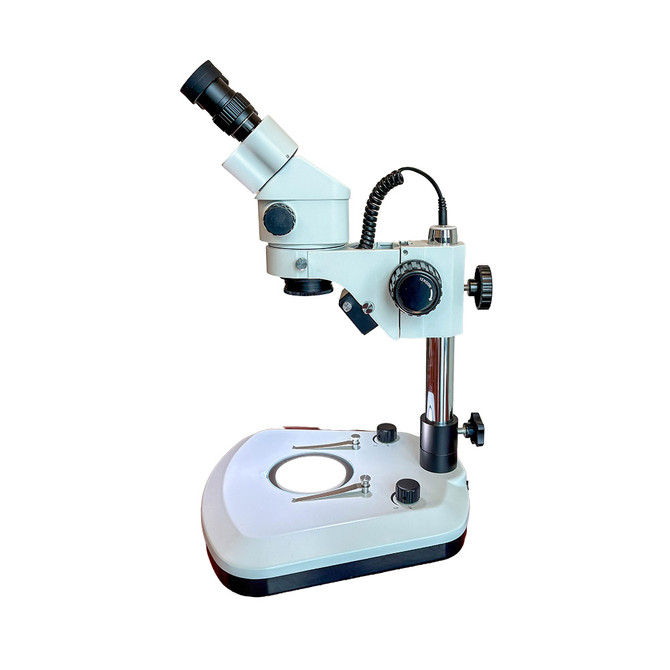

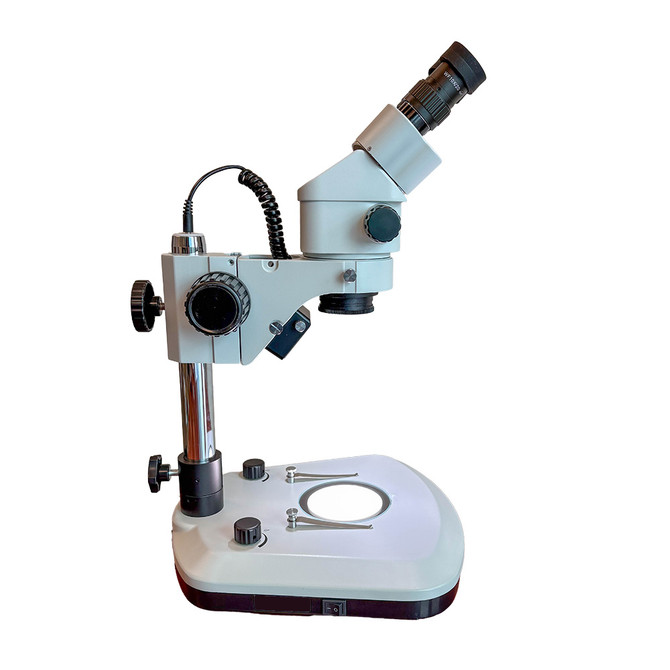

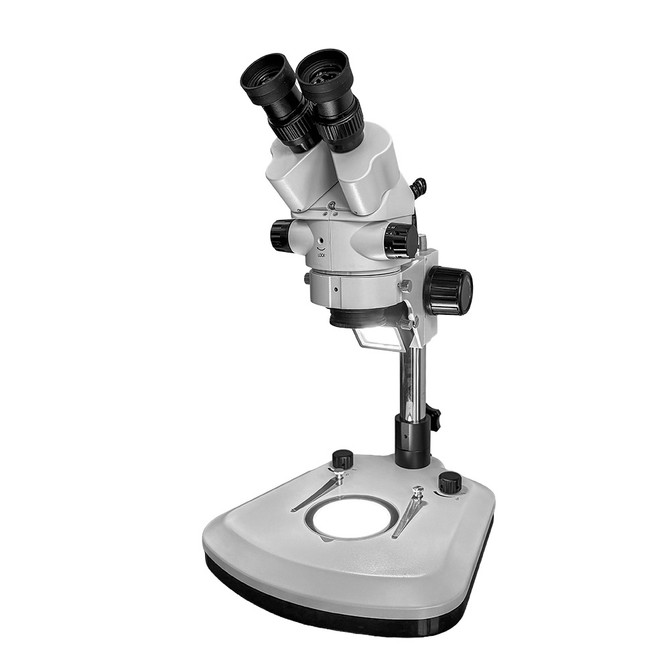

S6 Basic Stereo Zoom LED Microscope 10x-67x

The Richter Optica S6-ILS2-15 stereo microscope has zoom magnification of 10.5x - 67.5x and a binocular head. The microscope is on LED post stand with top and bottom illumination.

• Head: Binocular body. Viewing head rotates 360°, locks in place by tightening set screw.
• Eyepieces: Includes widefield 15x / 15mm high eyepoint eyepieces in focusing eyetubes. Interpupillary adjustment from 50mm to 75mm. Eyepieces accept 24mm diameter reticle. 10x and 20x eyepieces are available and can be ordered separately.
• Objective Lenses:  Zoom range of 0.7x - 4.5x.
• Zoom Ratio: 6.4:1
• Total Magnification: 10.5x - 67.5x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details. Option to lock zoom magnification at any specific stopping point in zoom range.
• Specimen Stage: Supplied with a 100mm glass stage plate. Has two locked-on stage clips.
• Stand: Post stand has built in top and bottom LED illuminators. Top illuminator has its own intensity control and each light operates independently of the other. 100~240V.
• Working Distance: 100mm
• Focusing: Coarse focusing.
• Illumination: Transmitted and reflected LED illumination with intensity control and on/off switch for each light. Top light has bright LED lights.
• Stand Size / Weight: Base is 11.5" W x 12" D, 14.75" H, 9.2 lbs.
• Warranty: 5 Year warranty on microscope.
• Included: Dust Cover

Instruction Manual
