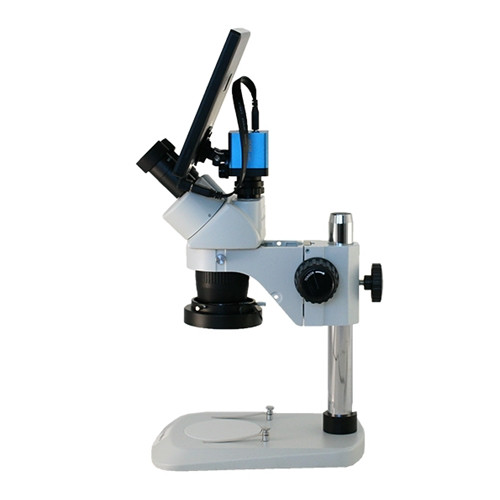

The Richter Optica S2-SPS-LCD digital LCD stereo microscope has dual magnification of 10x and 30x. Change magnification simply by turning the objective turret. The HD camera and 13" LCD monitor provide a live image.
- Head: Trinocular body with 0.5x C-Mount adapter on trinocular port. Beam splitter sends light from the left eyetube to the camera.
- Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces. Interpupillary adjustment from 55mm to 75mm. Diopter on left eyetube. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered below.
- Objective Lenses: Paired 1x and 3x objectives are parfocalled, parcentered, and achromatic. Magnification is changed by rotating objective turret 90° to positive click stops. Viewing head rotates 360°, locks in place by tightening set screw.
- Total Magnification: 10x and 30x.
- Specimen Stage: Supplied with 100mm black and white stage plate. Two locked-on stage clips.
- Stand: Rugged cast metal frame with gray enamel finish - head moves up and down on stand. Post is 11.25" high.
- Working Distance: 100mm
- Focusing: Rack & pinion focusing has slip clutch to protect mechanism against over-turning, and special tension adjustment.
- Illumination: 48-LED Ring Light with intensity control and on/off switch. 110~240V.
- Camera: Camera / Monitor: HD 1080p camera, live resolution 1920x1080 pixels. 2mp image capture to USB flash drive (drive not included). Live image 1080p / 60 fps. HDMI connection to 13" HD monitor. Camera controls for exposure, gain, white balance, color adjustment, sharpness. Includes mouse for on-screen controls. HDMI direct connection to monitor.
- LCD HD Monitor: 13" LCD HDMI monitor, 1080p. LED backlight. Monitor mounts directly to HD camera and includes 110~240V power cord and HDMI cable.
- Size & Weight: Base is 8.25" W x 11" D, 15" H, 10 lbs.
- Warranty: 5 year warranty on microscope, 1 year warranty on camera and monitor.
Click here to see ideas of things to view with this microscope.
