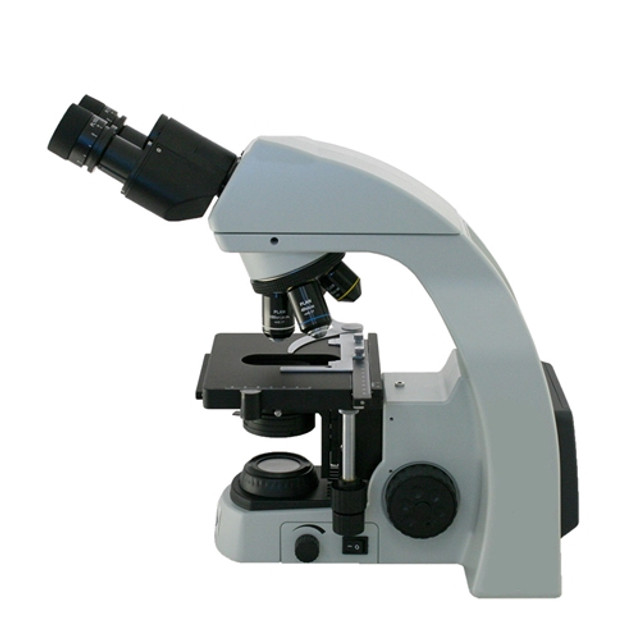

RB20 Basic Phase Contrast Microscope
The Fein Optic RB20 basic phase contrast microscope was created to provide simple phase contrast. This phase contrast microscope can be used to identify bacteri…
SKU:
Phase Contrast:
Simple Phase
$1,795.00 - $2,020.00
The Fein Optic RB20 basic phase contrast microscope was created to provide simple phase contrast. This phase contrast microscope can be used to identify bacteria, rotifers, blood cells, yeast and protozoa among many other samples.
- Objective Lenses: Infinity Corrected DIN Plan Achromat 4x, 10x, 40xR phase contrast, 100xR (oil immersion) plan objectives. All microscope objectives are parfocalled, parcentered and color-coded. Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives, features textured rubber knurling for easy grip. Mounted in reverse position to facilitate ease in changing slides.

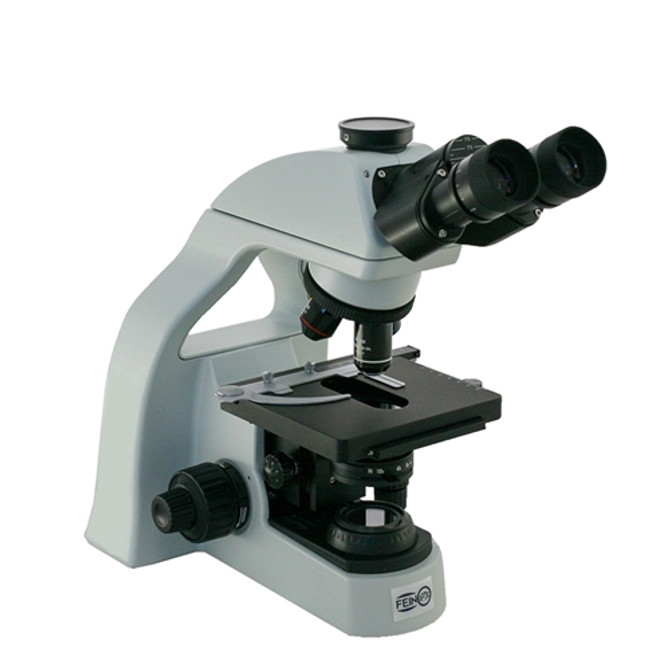

- Viewing Head: Your choice of binocular or trinocular Siedentopf head inclined at 30º, interpupillary adjustment 47mm to 75mm. Select when ordering.
- Eyepieces: Widefield High Eyepoint Focusing 10x eyepieces / FN 20mm. Eyepiece can hold a 20mm diameter reticle if the reticle retaining ring is added.
- Eyepiece Reticle: Select when ordering from the following options if you would like an eyepiece reticle installed: no reticle, a dual ruler reticle, a pointer reticle, or a cross line reticle.
- Reticle Specifications: If dual ruler reticle is selected a dual ruler 0.4" and 10mm reticle will be installed with the following specifications:
- 0.4" scale numbered 0-40, each division 0.1"
- 0-10 has 10 divisions = 0.01"
- 10-20 has 5 divisions = 0.02"
- 20-40 has 4 divisions = 0.05"
- 10mm scale numbered 0-1
- 0-1mm has 10 divisions = 0.1mm
- 1-2mm has 5 divisions = 0.2mm
- The pointer reticle may be viewed here.
- The crossline reticle may be viewed here.
- Total Magnification: 40x, 100x, 400x, 1000x.
- Specimen Stage: Large 150mm x 105mm stage with professional quality, built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls, 76mm (x) by 50mm (y) movement with graduations of 0.1mm.
- Condenser: 1.25 N.A. Abbe condenser has rack & pinion focusing and iris diaphragm. Includes phase slider.
- Focusing: Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated. Locking position for stage.
- Illumination: Fixed Koehler illuminator 3W LED with variable rheostat control and on/off switch.110~240V power supply.

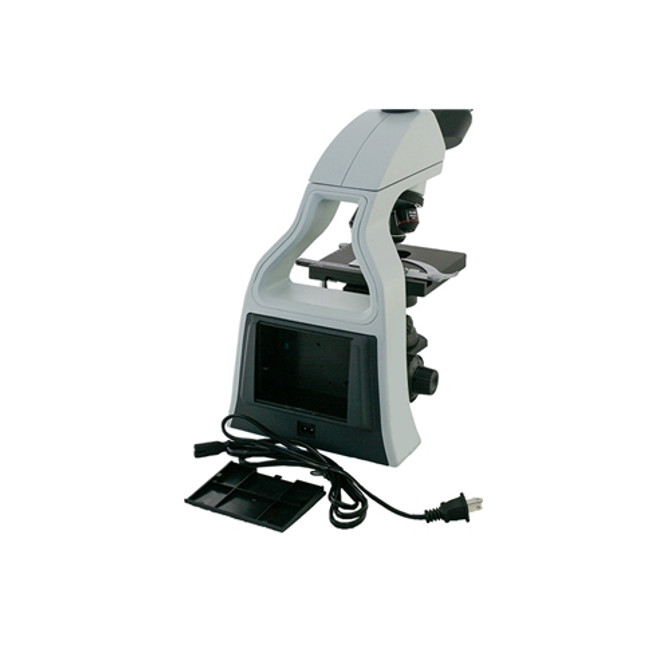

- Cord and Accessory Storage: Storage compartment located on the back of the microscope frame to store power cord and microscope accessories when not in use.
- Size & Weight: 9" W x 15.5" D x 14" H, 17 lbs.
- Warranty: 5 Year warranty, excluding bulb, cord and fuse.
- Includes: Dust Cover, lens cleaning paper, phase centering telescope.
