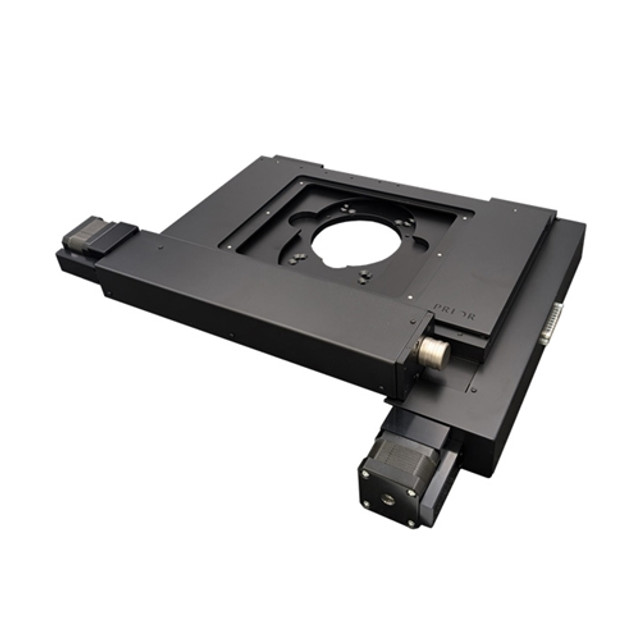

The Prior Scientific H101P1F flat top motorized stage for upright microscopes has a design that provides unlimited obstruction free space for objective and nosepiece rotation. Ultra low profile sample holders facilitate the use of high NA objectives / condensers while the latest in miniature high torque motors facilitate access to the condenser and other microscope adjustments. Intelligent Scanning Technology (IST) allows each stage to be pre-programmed with a unique set of operating characteristics particular to that stage to ensure optimum performance and allows the ProScan III controller to make any required adjustments to maintain superior orthogonally and metric accuracy.
Specify microscope make and model when ordering.
Flat Top Motorized Stage Specifications:
- Travel: 114mm x 75mm XY travel (4" x 3")
- Motor Type: Stepper
- Resolution: 20nm (1mm screw pitch)
- XY Repeatability: +/-0.7(0.2)µm
- Minimum Step Size: 0.02µm
- Metric Accuracy (per mm of travel): 0.2µm (Requires use of ProScan III Controller)
- Maximum Velocity: 20mm/second
- Weight: 5 kg (11 lbs)
- Max Load Capacity: 10 kg (22 lbs)
- Warranty: 5 Years
View the Flat Top H101F Motorized Stage Brochure
NOTE: This item is not returnable.
Prior Scientific Part #s H101P1F
