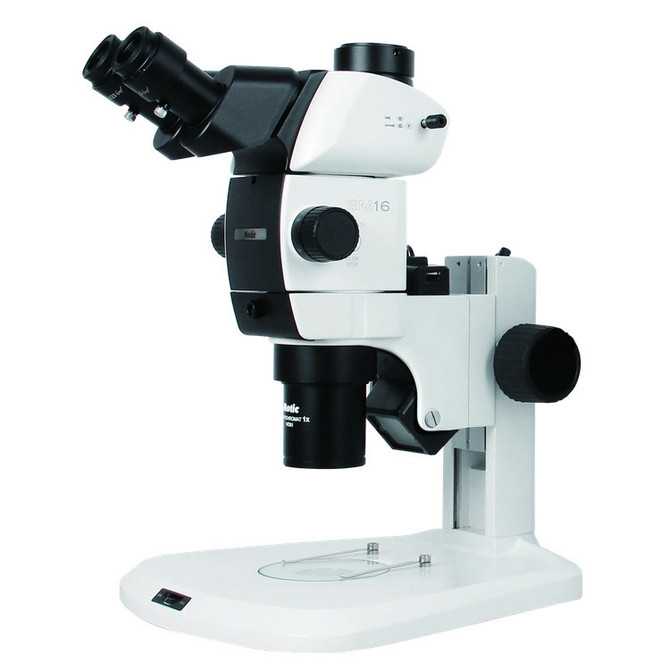

SM16 1X APO CMO Motic Stereo Microscope 16 to 1 Zoom

The Motic SM-16 common main objective stereo microscope provides high resolution, true color reproduction, and low distortion. The Galilean Optical Zoom System, denoting an Infinity Optical System, allows for high flexibility. Select when ordering from a binocular or trinocular viewing head.

• Optical System: Infinity optical system, common main objective (CMO, Galilean), ideal for inspection applications.
• Viewing Head: A binocular or trinocular viewing head is available. Trinocular head has 2-step light path selection options: 100% eyepieces or 80% trinocular / 20% eyepieces.
• Eyepieces: Includes widefield 10x/23 eyepieces with ± 5 diopter adjustment. Eyetubes are inclined 30°. Interpupillary distance can be adjusted from 55mm to 75mm.
• Objective Lens: 1x plan appchromat objective lens
• Working Distance: 81mm
• Zoom Ratio: 16:1
• Zoom Magnification: 0.6x - 9.8x has click stops at 0.6x, 0.7x, 0.8x, 1x, 1.25x, 1.6x, 2x, 3x, 4x, 5x, 6x, 7.5x, and 9.8x. The click-stop mechanism can be turned on or off.
• Total Magnification: 6x - 98x
• Stand: Large working area stand has base measuring 290mm W x 314mm H. Includes black and white stage plate (Ø 160mm).
• Focusing: Coarse focusing controls with knob tension adjustment, focusing stroke 120mm. Diameter of focus holder is 76 mm.
• Illumination: Includes 4-quadrant LED ring light, ESD free. Light has variable intensity and adjustable brightness from 0-100%. 72 LED lights offer cool, bright illumination. UL, CSA Certified. 100~240V.
• Dimensions: 14.6" H x 14.5" L x 13" W.
• Warranty: Five year warranty excluding any electrical parts, and 1 year warranty on LED ring light.
