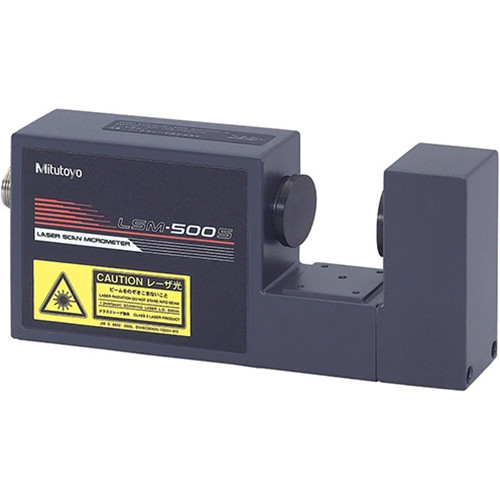

Mitutoyo LSM-500S Ultra Fine Wire Laser Scan Micrometer

No reviews yet Write a Review
The Mitutoyo LSM-500S is a laser scan micrometer made for ultra-fine wire measurement. This laser scan micrometer permits measurements starting from Ø5&m…

Read more
SKU: 544-532
$13,054.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

The Mitutoyo LSM-500S is a laser scan micrometer made for ultra-fine wire measurement. This laser scan micrometer permits measurements starting from Ø5µm. Ultra-high accuracy with a linearity of +/-3µm over the entire measurement range (5µm - 2mm). NOTE: you will need either the LSM-5200 compact display unit or the LSM-6200 display unit to read the output data.

Contact Microscope World for information on having this instrument calibrated.

  • Measuring Range 0.005 - 2mm (0.0002 - 0.08")
  • Resolution (selectable) 0.01 to 10µm (0.000001 - 0.0005")
  • Repeatability +/-0.03µm (+/-1.1µ")
  • Accuracy +/-0.03µm
  • Measuring Area 1x2mm (0.05 to 2mm)
  • Scanning Rate 3200 scans/s
  • Laser Wavelength 650nm (visible), IEC Class 2/, FDA Class II
  • Laser Scanning Speed 76m/s
  • Protection Level IP64
  • Display Unit None included, options listed below.



      Mitutoyo part #: 544-532


NOTE: This item is not returnable.
