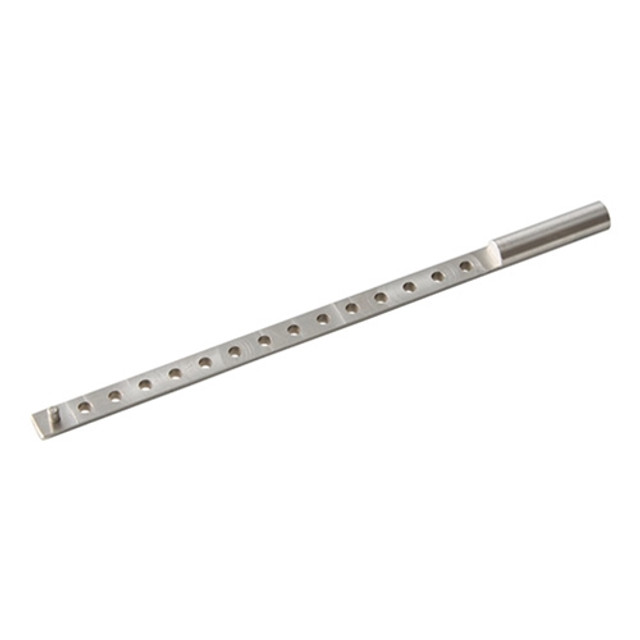

Mitutoyo Adjustable Tie Rod 86.5mm

The tie rod can be inserted in the center hole of a square gage block and fixed with a screw or stud (sold separately) in order to attach multiple gage blocks together. This tie rod is composed of two pieces, and its length can be adjusted. The rod has the following dimensions (see diagram for reference):

• Length (L) = 86.5mm
• P = 6.35mm
• Number of holes (n) = 8

NOTE: This item is not returnable.
